Electric Water Pump - Installation

INSTALLATION

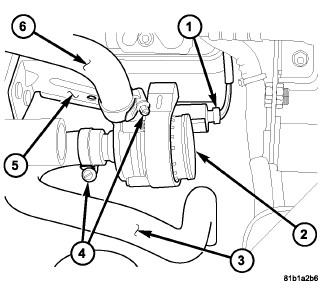

1. Install the electric coolant pump (2) onto the bracket (5).
2. Using a twisting motion gently install both heater hoses (3 and 6) onto the electric coolant pump.
3. Tighten the hose clamps (4) securely.
4. Connect the wire harness connector (1) to the electric coolant pump.
5. Reconnect the negative battery cable.
6. Install the air cleaner housing Air Cleaner Body - Installation.
7. Refill the engine cooling system Service and Repair.
