Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Center
>>
Wiring Diagram Index
Wiring Diagram Index

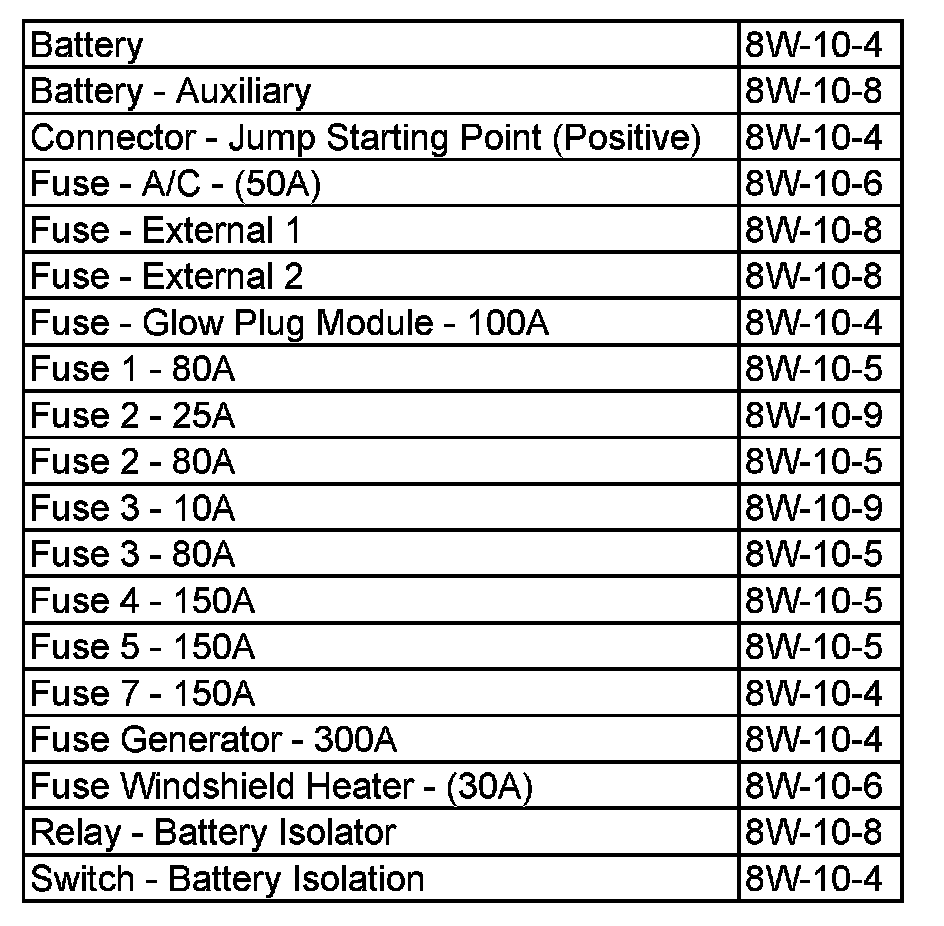

Power Distribution Circuits:
Fuse Block Circuits (Antenna - FBS - Hatch - Fuse 23 - 25A):

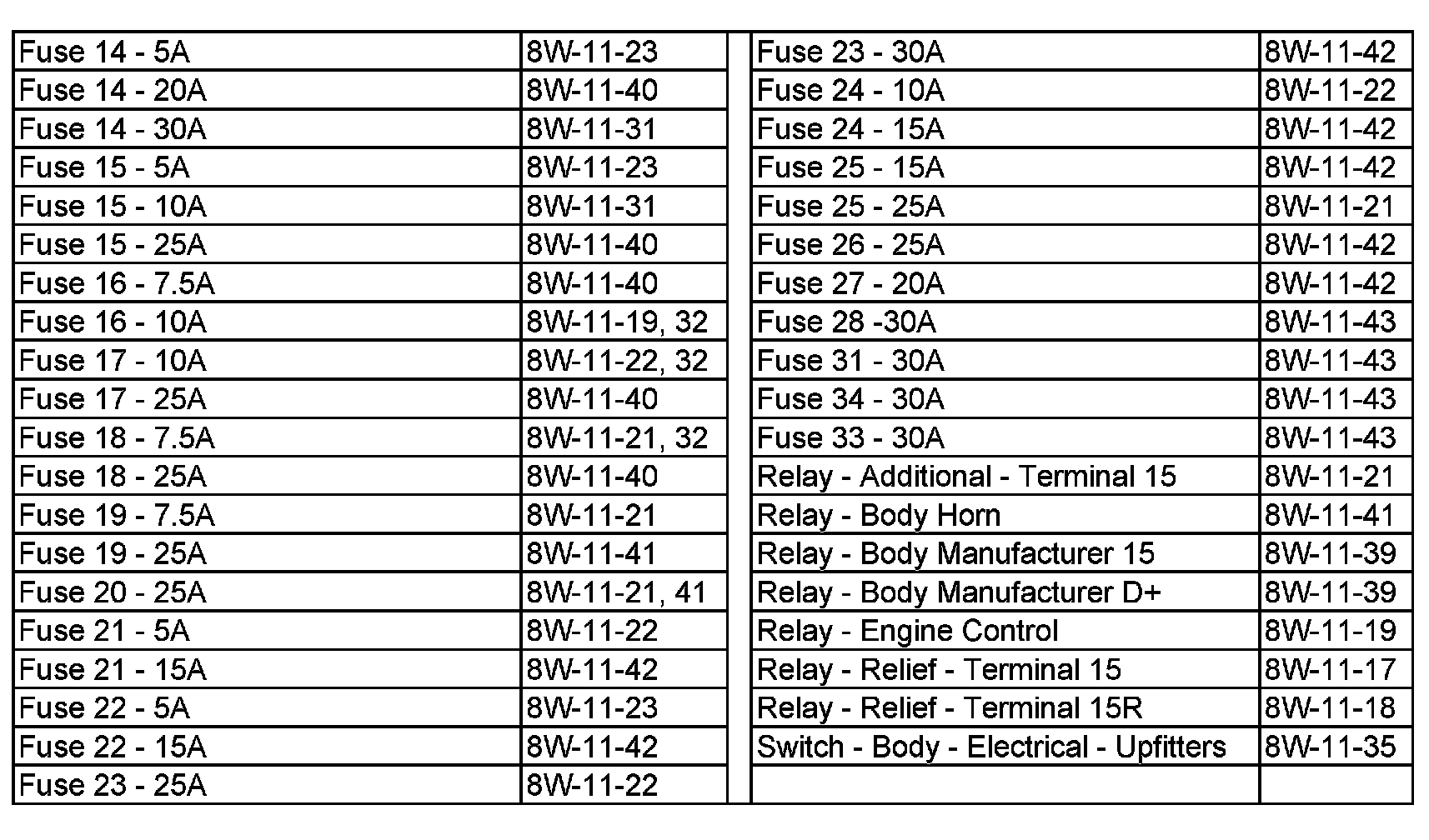

Fuse Block Circuits (Fuse 23 - Switch - Body - Electrical - Upfitters):
