Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Communication Module >> Steering Control Module C2 (CLS) 14 Way

Steering Control Module C2 (CLS) 14 Way

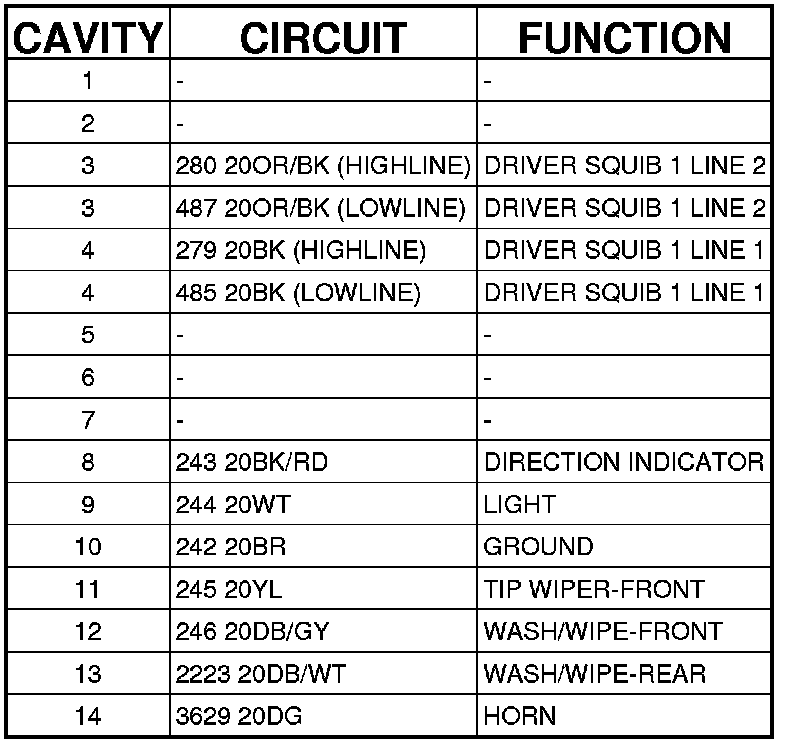

Connector C2 - (CLS) 14 WAY

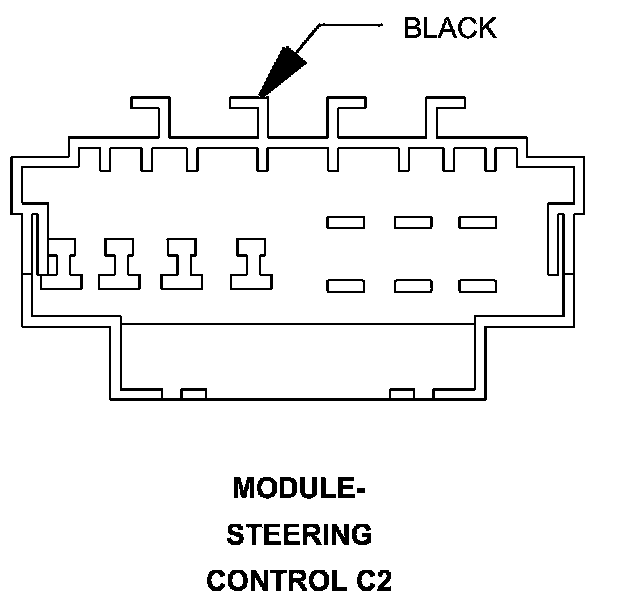

MODULE-STEERING CONTROL - (CLS) 14 WAY
