Steering Control Module C1 (CLS) 14 Way

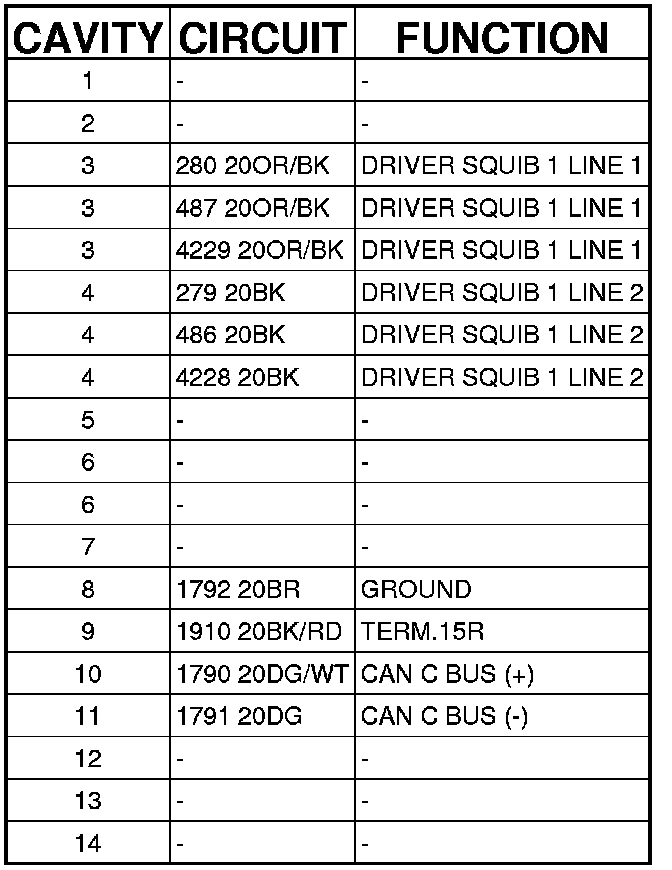

Connector C1 - (CLS) 14 WAY

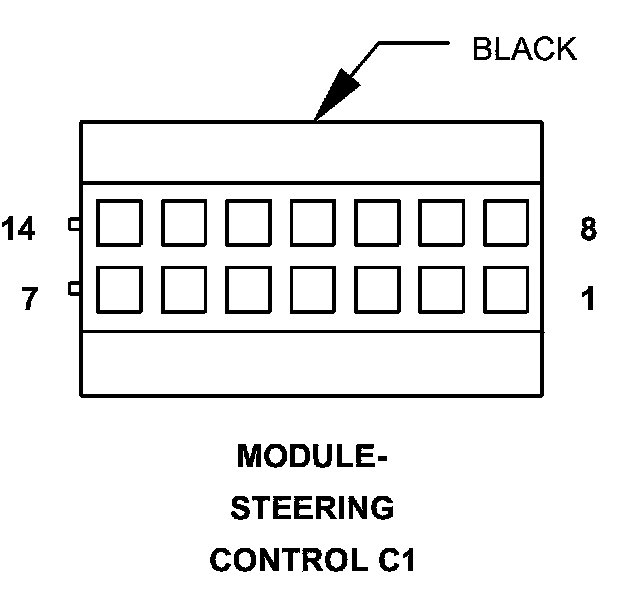

MODULE-STEERING CONTROL - (CLS) 14 WAY
