Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door
>>
Sliding Door Latch
>>
Right Sliding Door Secondary Latch 4 Way
Right Sliding Door Secondary Latch 4 Way

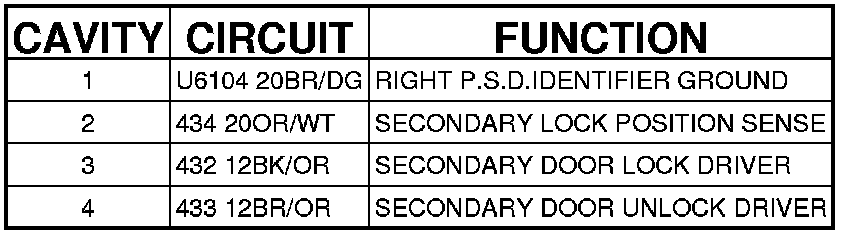

Connector - 4 WAY
LATCH-SECONDARY DOOR-RIGHT SLIDING - 4 WAY
