Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door
>>
Sliding Door Latch
>>
Right Sliding Door Latch C2 (LST Right) 3 Way
Right Sliding Door Latch C2 (LST Right) 3 Way

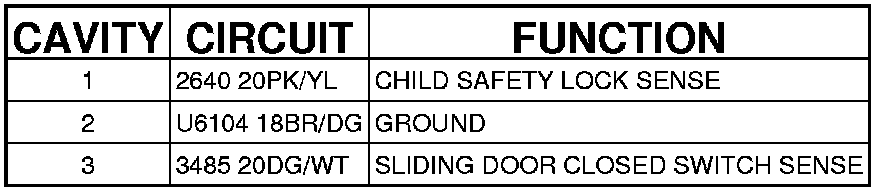

Connector C2 - (LST_RE) 3 WAY
LATCH-DOOR-RIGHT SLIDING - (LST_RE) 3 WAY
