Right Sliding Door Latch C1 (LST Right) 8 Way
Right Sliding Door Latch C1 (LST Right) 8 Way

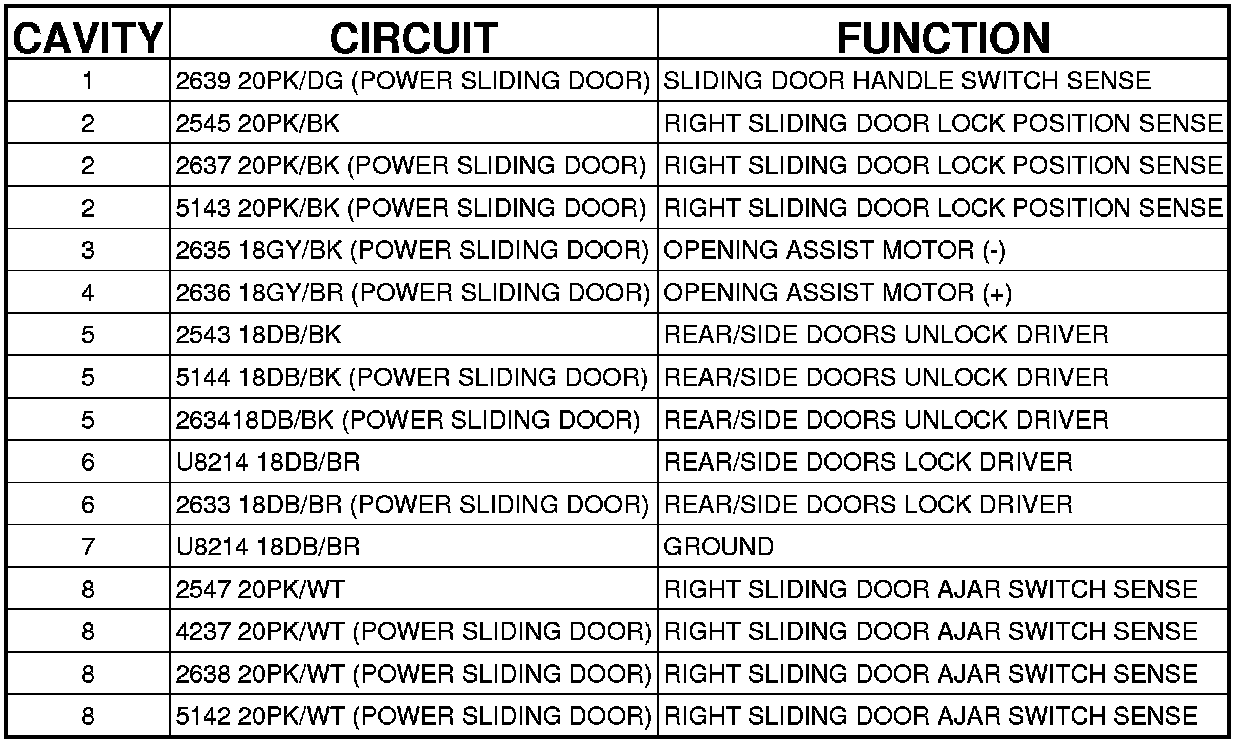

Connector C1 - (LST_RE) 8 WAY

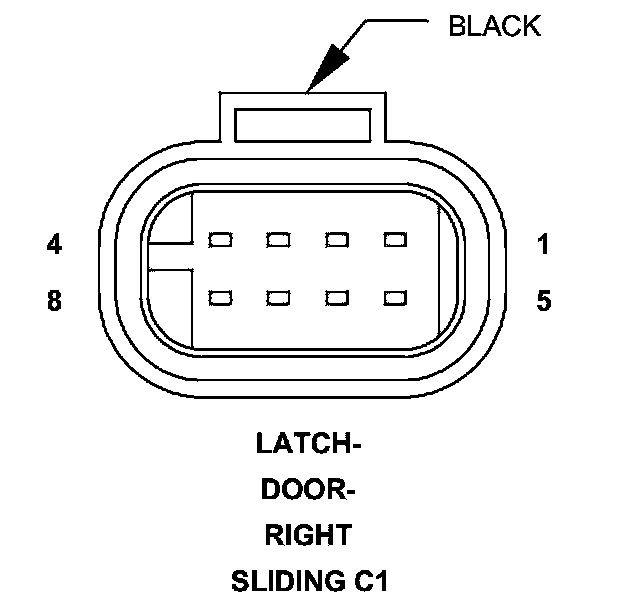

LATCH-DOOR-RIGHT SLIDING - (LST_RE) 8 WAY
