Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door
>>
Sliding Door Latch
>>

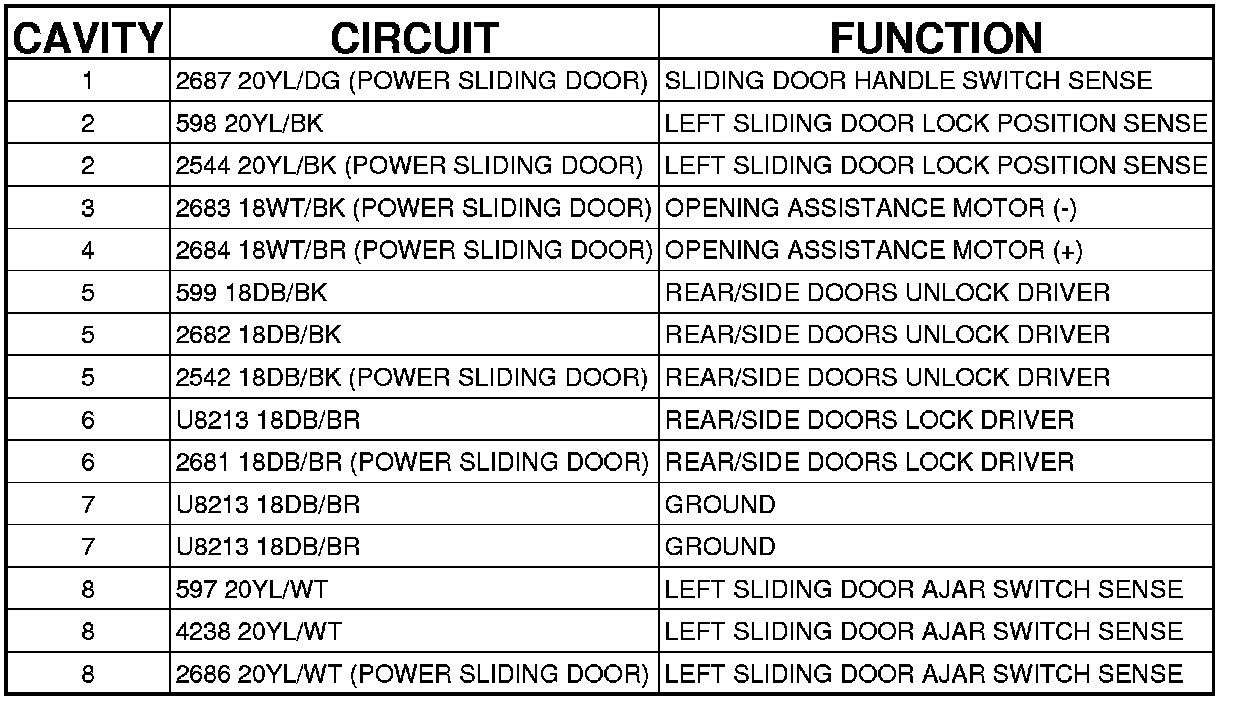

Left Sliding Door Latch C1 (LST Left) 8 Way
Left Sliding Door Latch C1 (LST Left) 8 Way

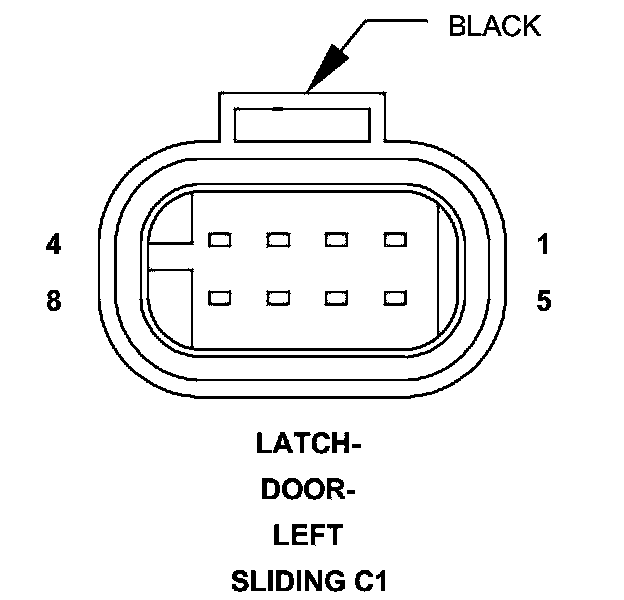

Connector C1 - (LST LI) 8 WAY
LATCH-DOOR-LEFT SLIDING - (LST LI) 8 WAY
