Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram >> Left Headlamp (HLS ) 10 Way

Left Headlamp (HLS ) 10 Way

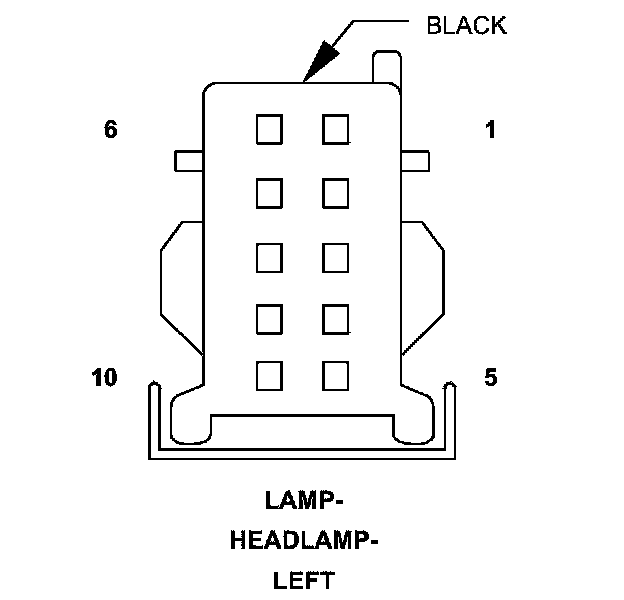

Connector - (HLS ) 10 WAY

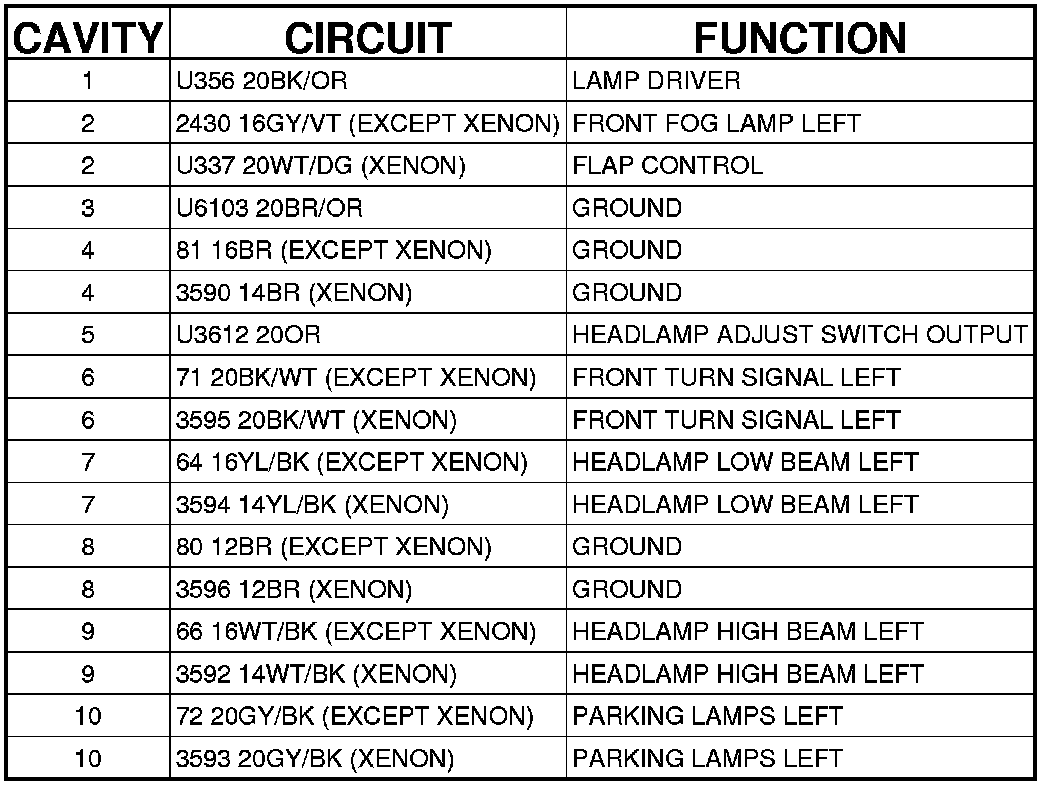

LAMP-HEADLAMP-LEFT - (HLS ) 10 WAY
