Front Headlamp Level Sensor (LU LW Front) 4 Way

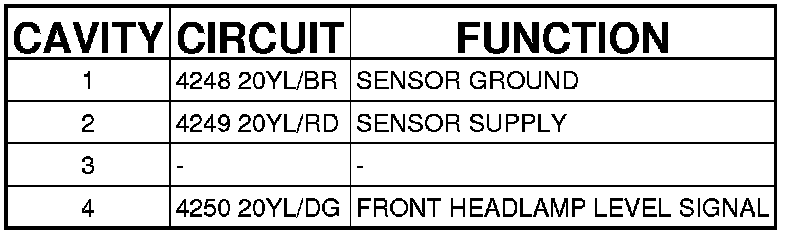

Connector - (LU LW VORN) 4 WAY




SENSOR-HEADLAMP LEVEL-FRONT - (LU LW VORN) 4 WAY
