Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module C2 (Diesel) (HLS) 58 Way

Engine Control Module C2 (Diesel) (HLS) 58 Way

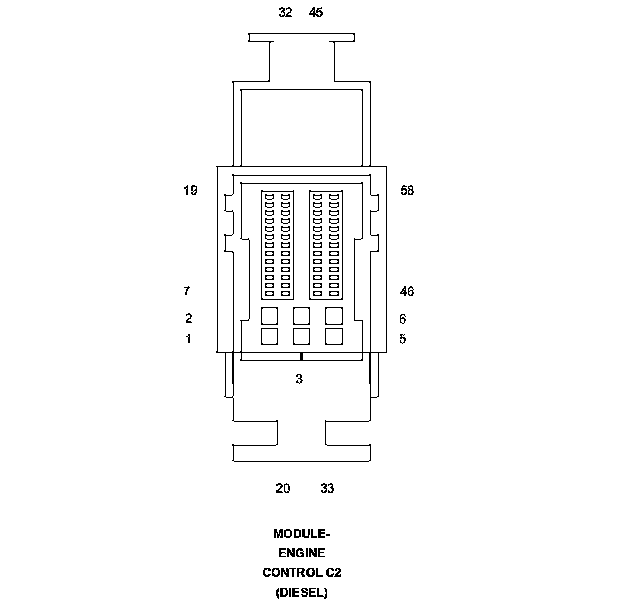

Connector C2 (DIESEL) - (HLS) 58 WAY

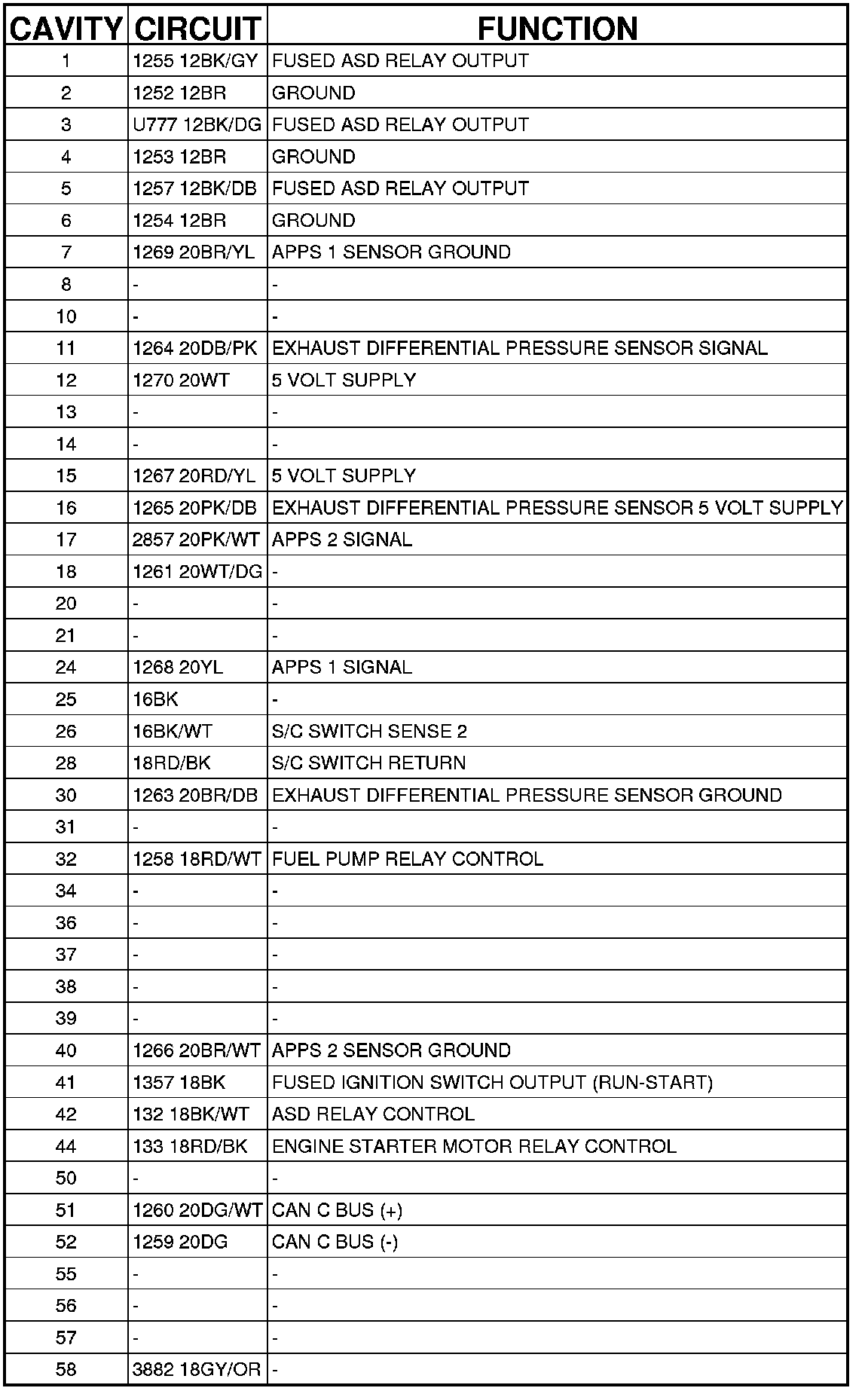

MODULE-ENGINE CONTROL (DIESEL) - (HLS) 58 WAY
