Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module C3 (FT) 4 Way

Driver Door Module C3 (FT) 4 Way

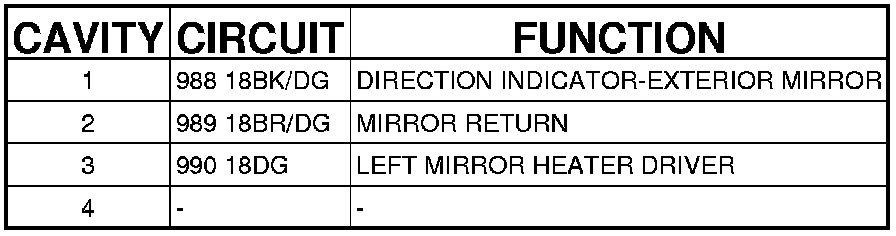

Connector C3 - (FT) 4 WAY

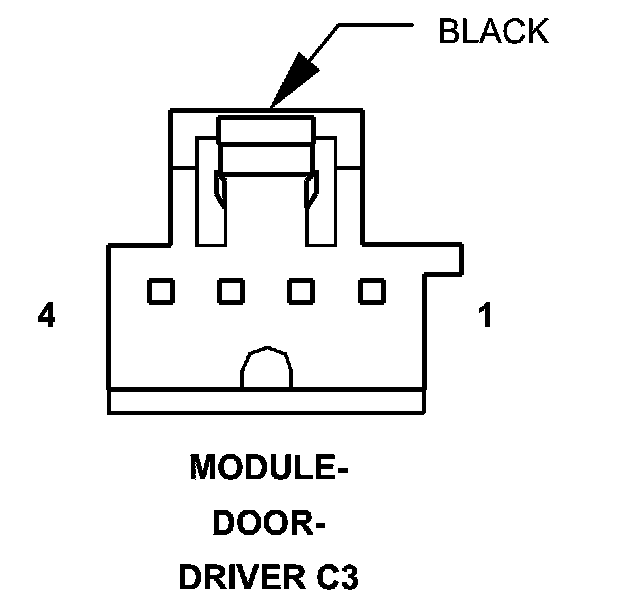

MODULE-DOOR-DRIVER - (FT) 4 WAY
