Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

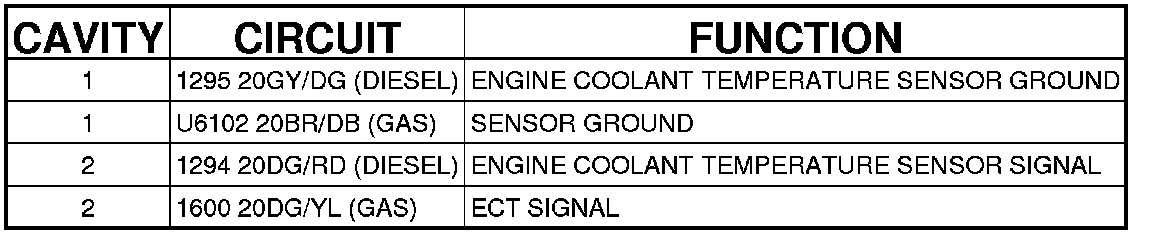

Connector - (M272/OM642) 2 WAY
SENSOR-ENGINE COOLANT TEMPERATURE - (M272/OM642) 2 WAY
