A/C-Heater Control C9 (CLS) 10 Way
A/C-Heater Control C9 (CLS) 10 Way

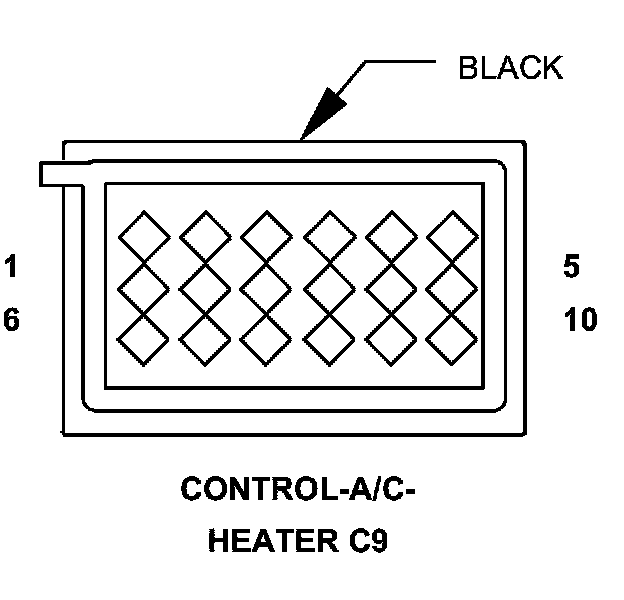

Connector C9 - (CLS) 10 WAY

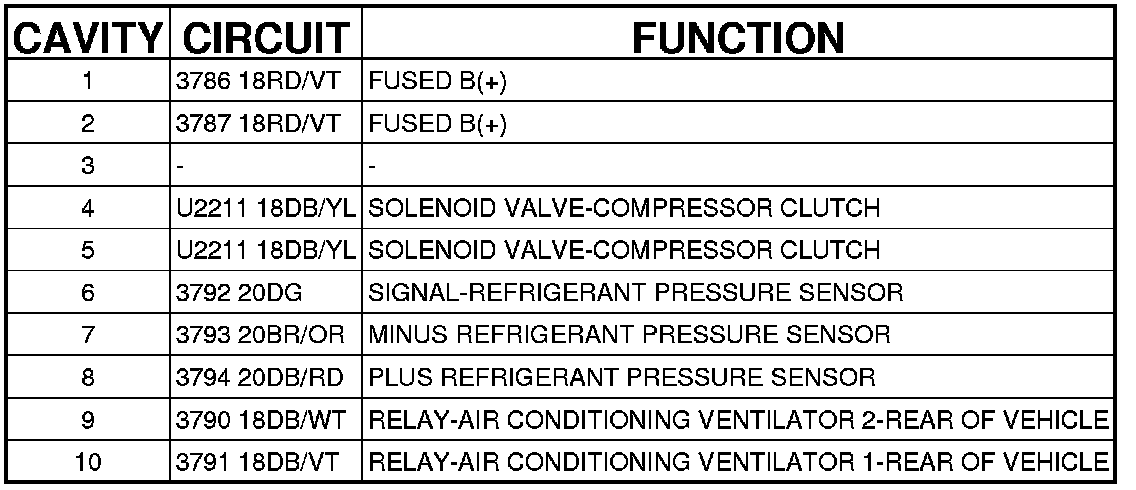

CONTROL-A/C-HEATER - (CLS) 10 WAY
