A/C-Heater Control C8 (CLS) 12 Way
A/C-Heater Control C8 (CLS) 12 Way

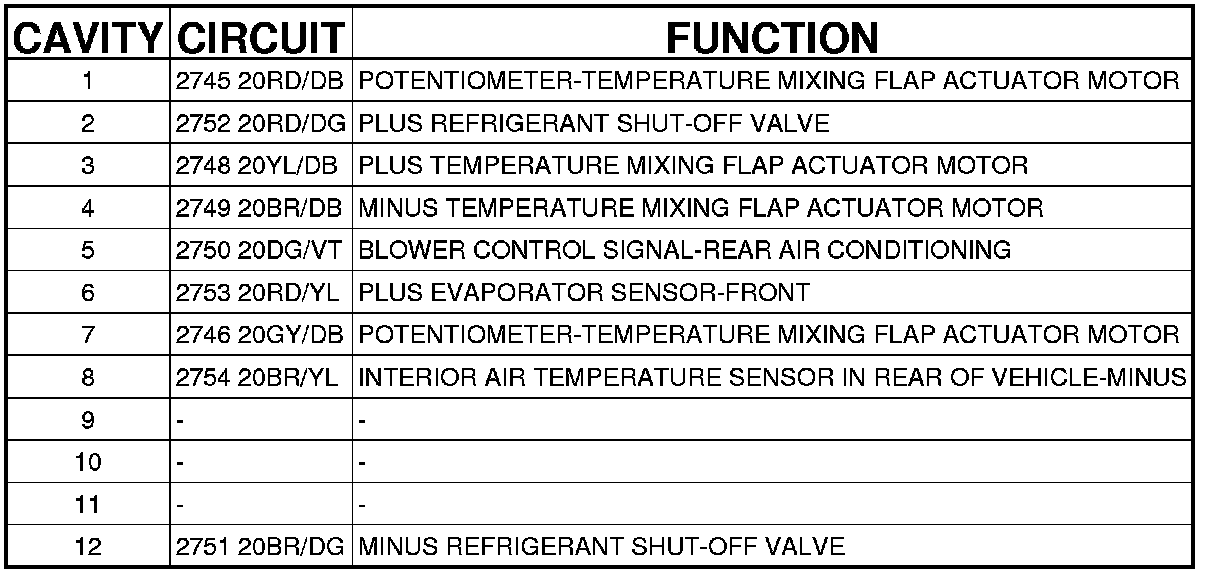

Connector C8 - (CLS) 12 WAY

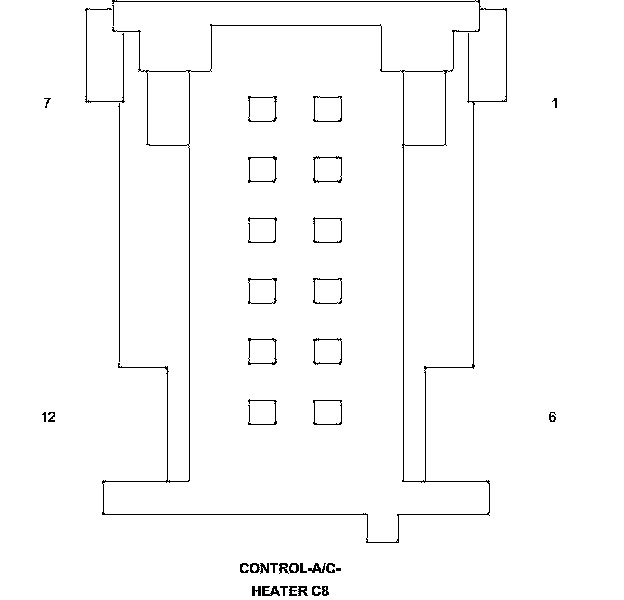

CONTROL-A/C-HEATER - (CLS) 12 WAY
