A/C-Heater Control C7 (CLS) 8 Way
A/C-Heater Control C7 (CLS) 8 Way

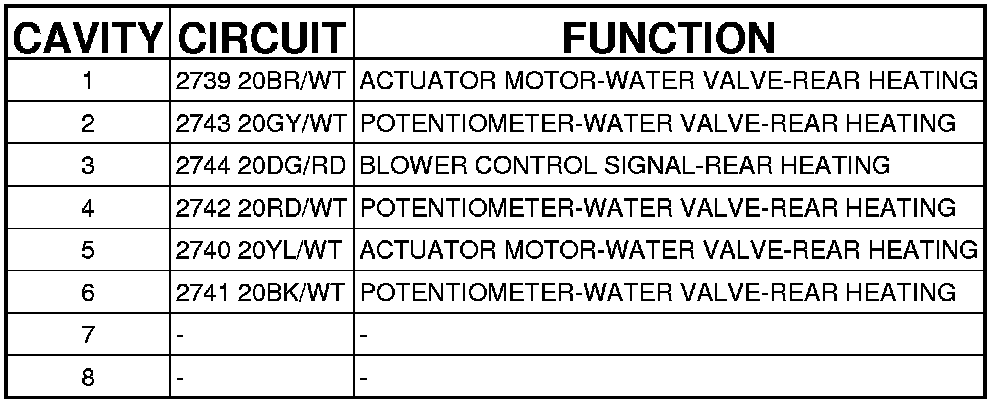

Connector C7 - (CLS) 8 WAY

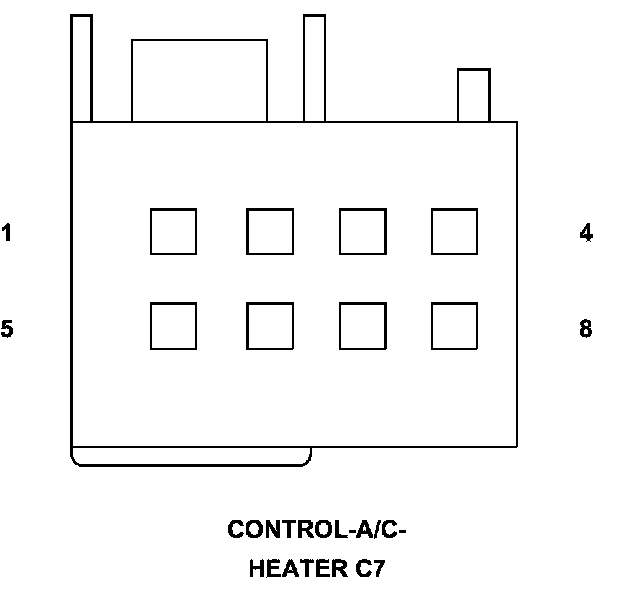

CONTROL-A/C-HEATER - (CLS) 8 WAY
