A/C-Heater Control C2 (LU Climate) 28 Way
A/C-Heater Control C2 (LU Climate) 28 Way

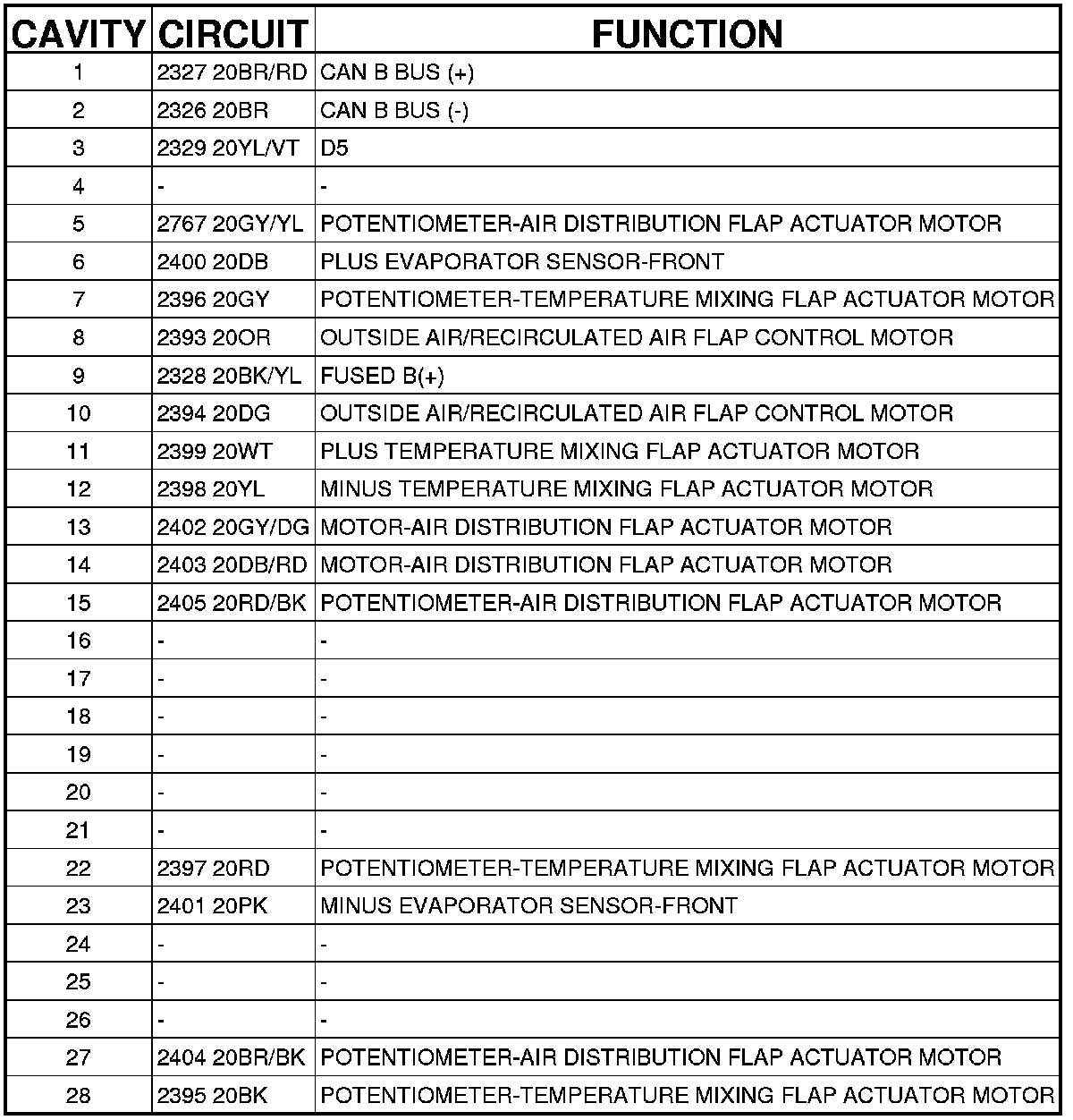

Connector C2 - (LU KLIMA) 28 WAY

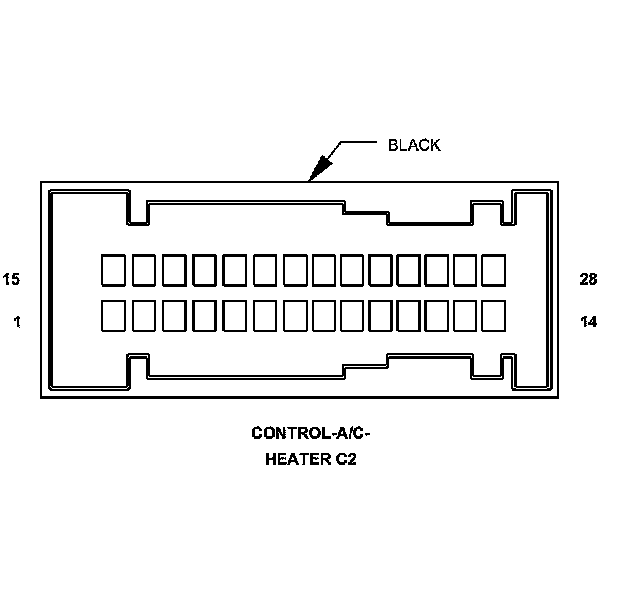

CONTROL-A/C-HEATER - (LU KLIMA) 28 WAY
