Roof Control Module C5 (DLS) 3 Way






Connector C5 - (DLS) 3 WAY

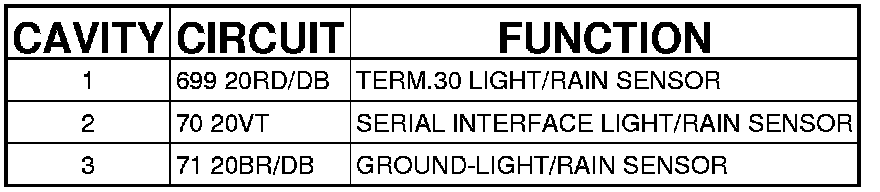

MODULE-ROOF CONTROL - (DLS) 3 WAY
