Roof Control Module C4 (LU DBE) 6 Way
Roof Control Module C4 (LU DBE) 6 Way

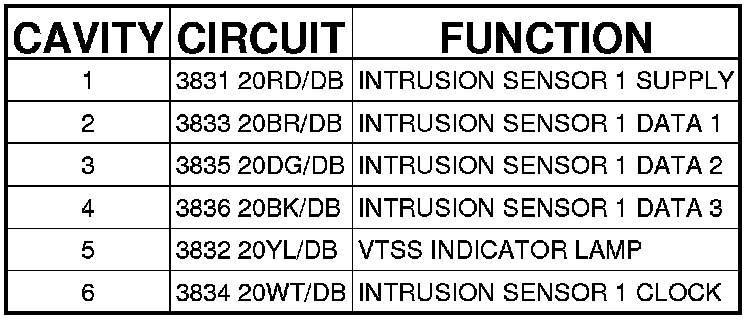

Connector C4 - (LU DBE) 6 WAY
MODULE-ROOF CONTROL - (LU DBE) 6 WAY
