Roof Control Module C2 (DLS) 6 Way






Connector C2 - (DLS) 6 WAY

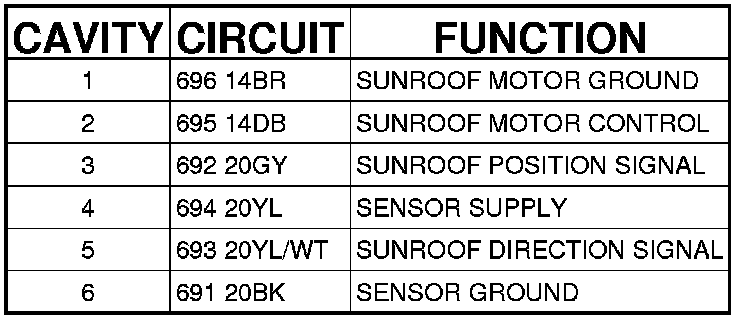

MODULE-ROOF CONTROL - (DLS) 6 WAY
