Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C394 (HLS Side) 6 Way

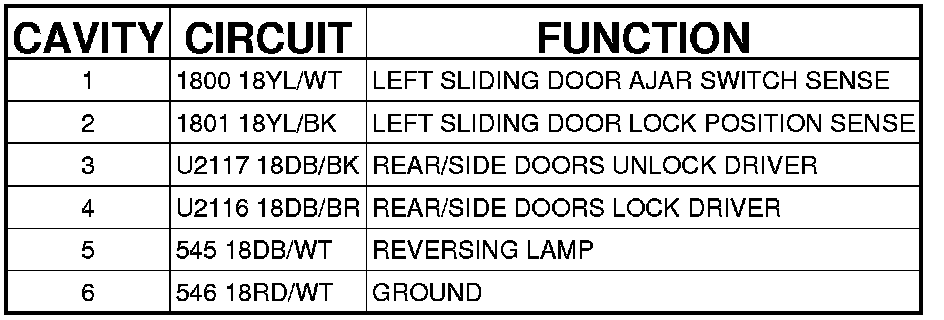

C394 (HLS Side) 6 Way






Connector - (HLS SIDE) 6 WAY




C394 - (HLS SIDE) 6 WAY
