Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C375 (LST Right Side) 8 Way

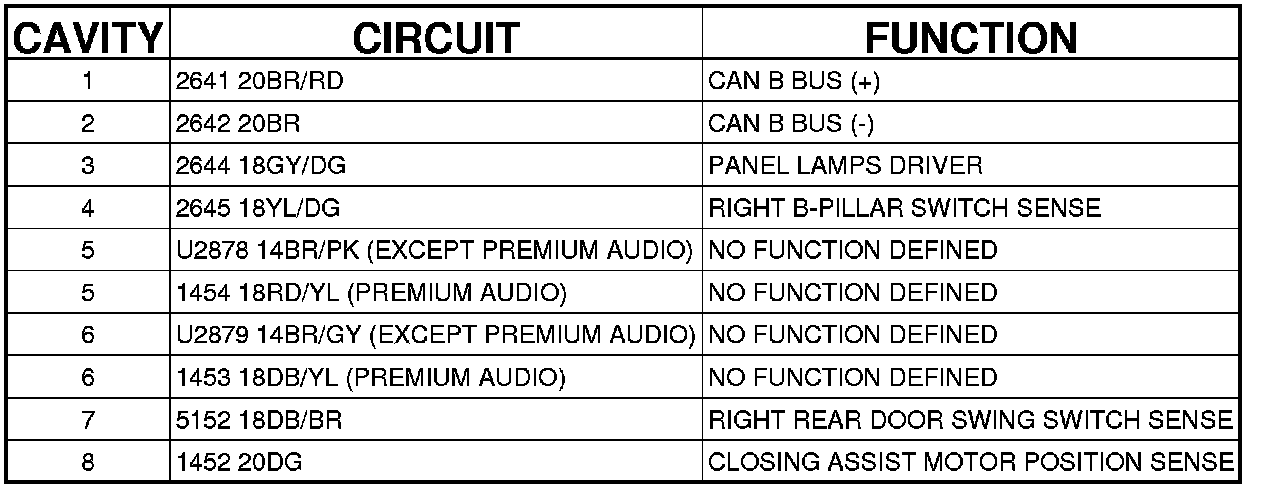

C375 (LST Right Side) 8 Way






Connector - (LST RE SIDE) 8 WAY




C375 - (LST RE SIDE) 8 WAY
