Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C338 (LU Camera) 6 Way

C338 (LU Camera) 6 Way






Connector - (LU KAMERA) 6 WAY

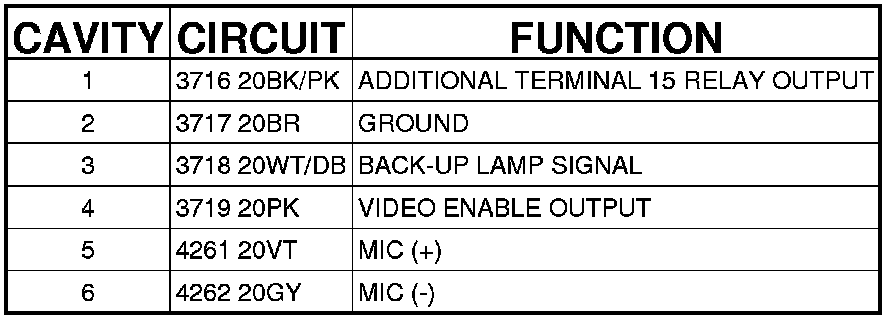

C338 - (LU KAMERA) 6 WAY
