Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C314 (DLS Side) 28 Way

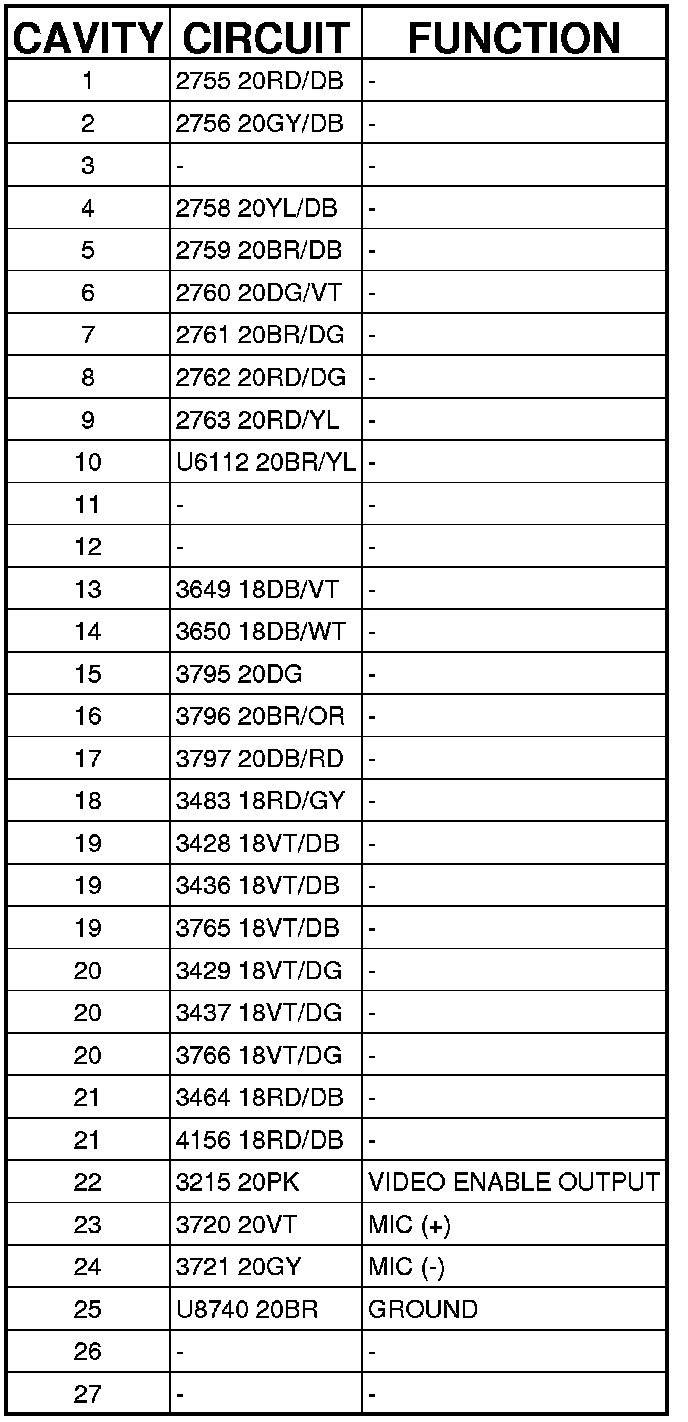

C314 (DLS Side) 28 Way






Connector - (DLS SIDE) 28 WAY




C314 - (DLS SIDE) 28 WAY
