Programmable Special Module C2 (HLS) 21 Way

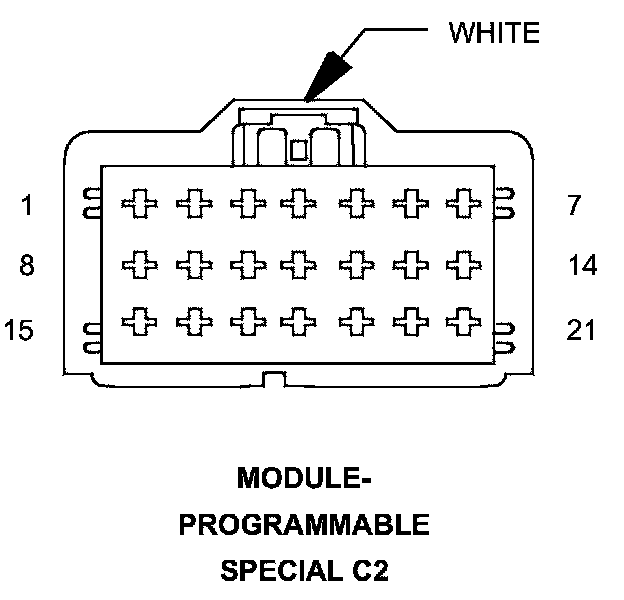

Connector C2 - (HLS) 21 WAY

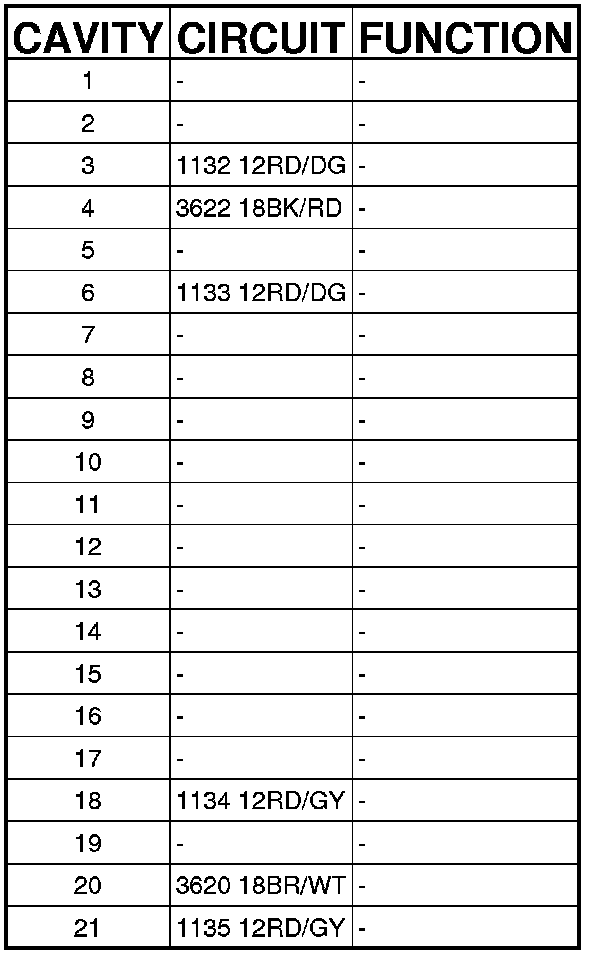

MODULE-PROGRAMMABLE SPECIAL - (HLS) 21 WAY
