Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module C9 (HLS) 52 Way

Body Control Module C9 (HLS) 52 Way

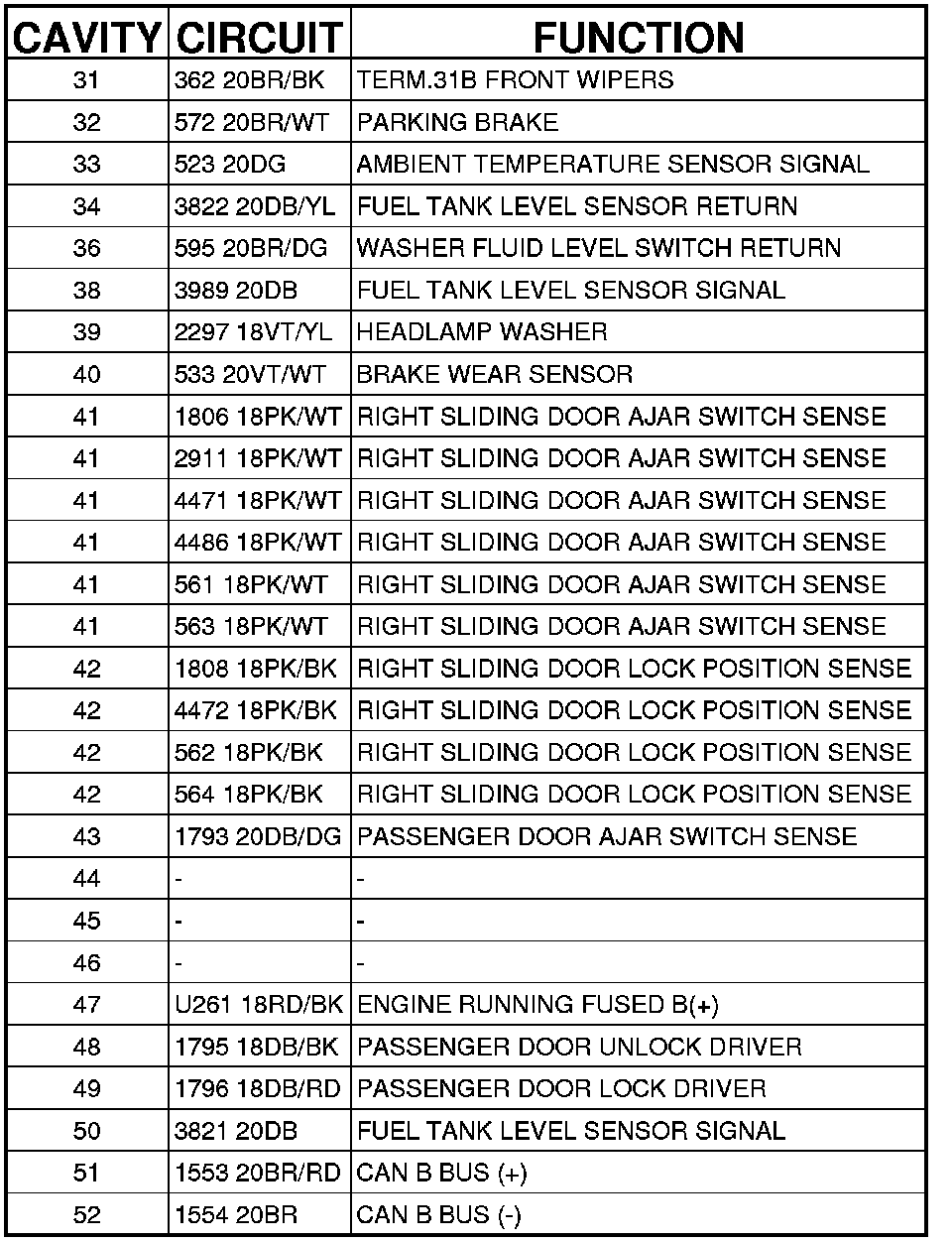

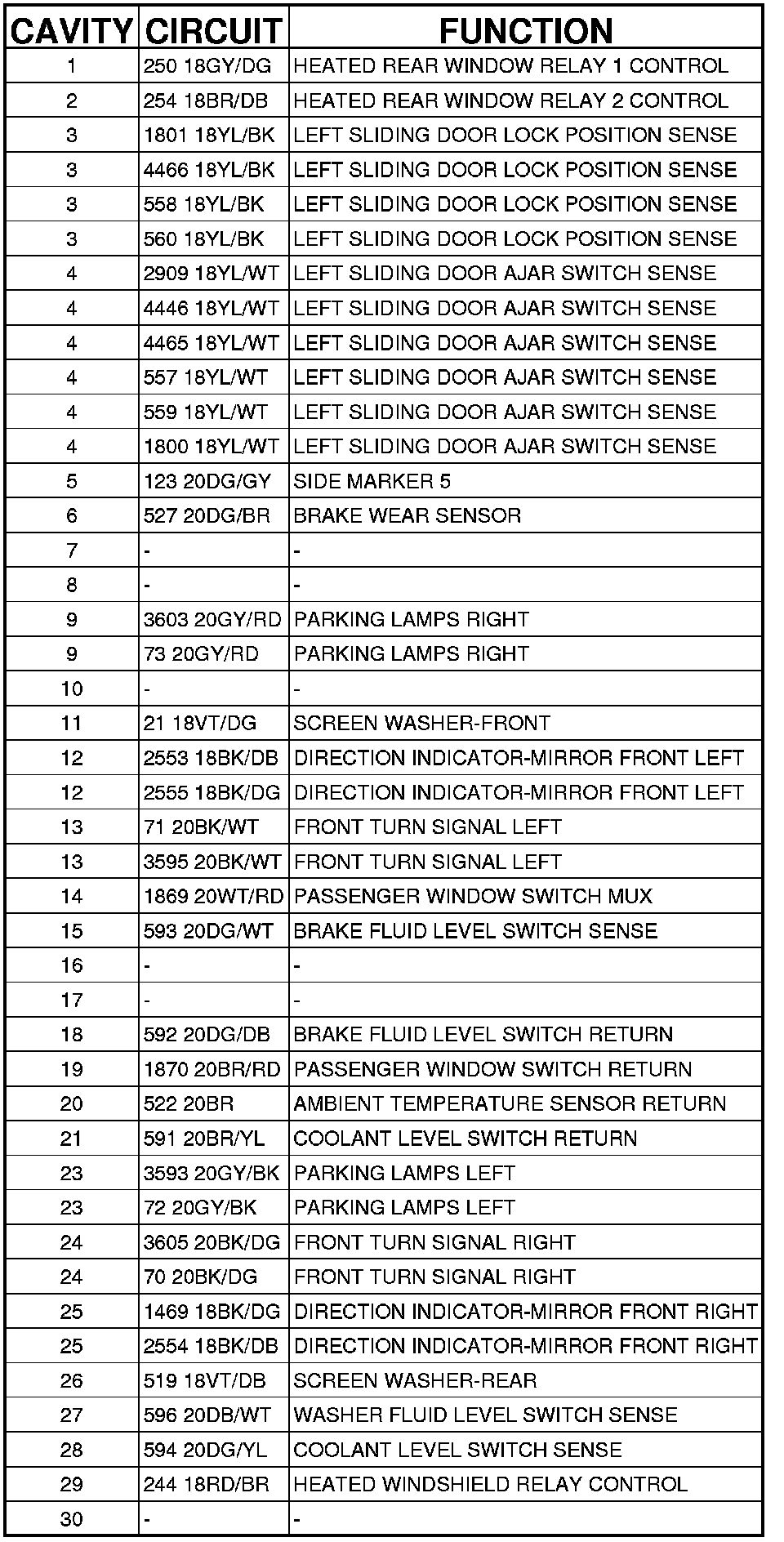

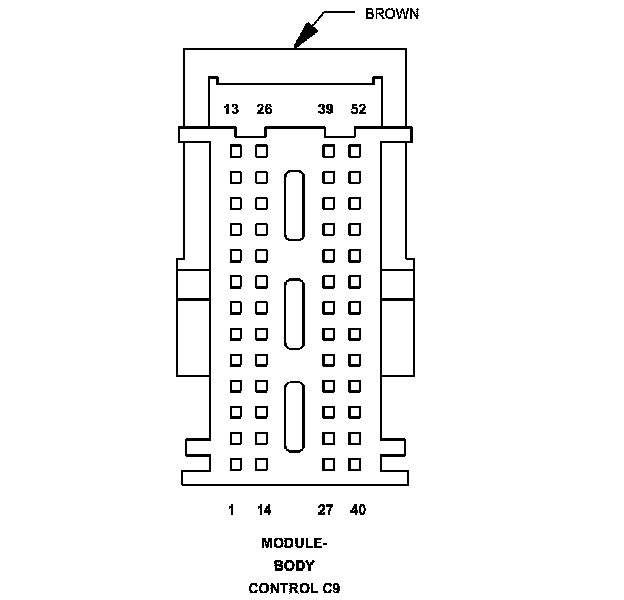

Connector C9 - (HLS) 52 WAY




MODULE-BODY CONTROL - (HLS) 52 WAY
