Body Control Module C1 (CLS) 24 Way
Body Control Module C1 (CLS) 24 Way

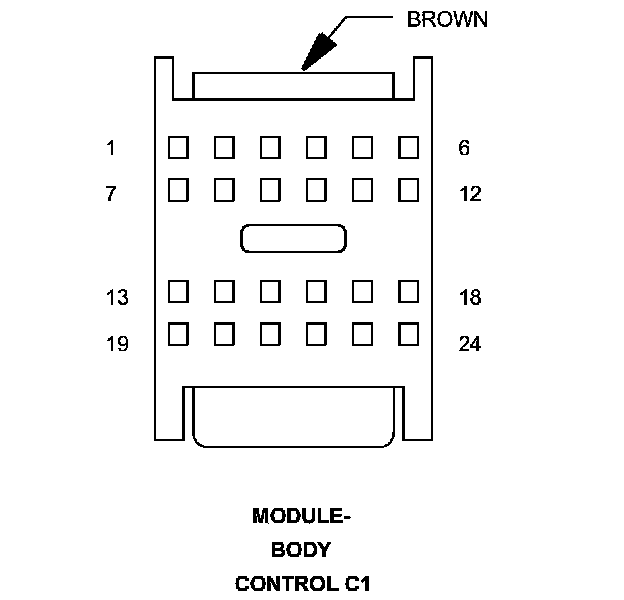

Connector C1 - (CLS) 24 WAY

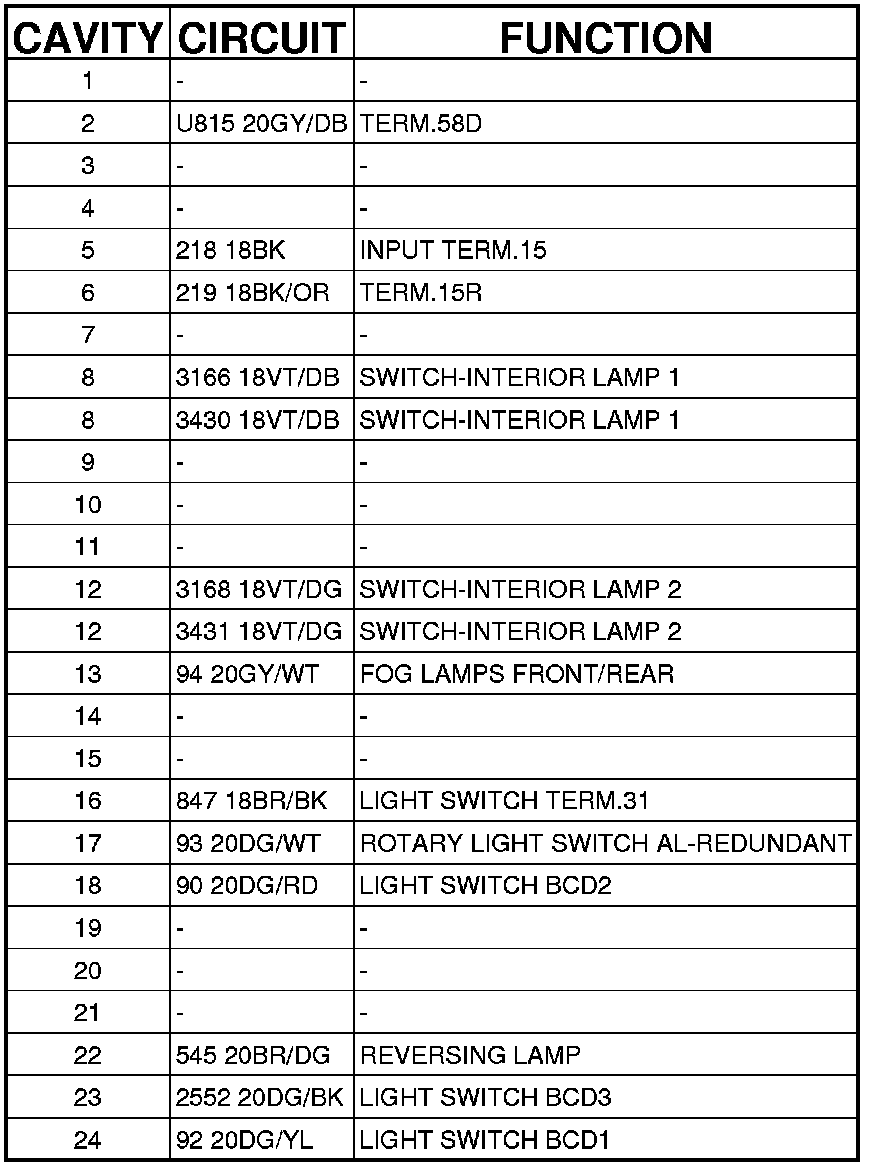

MODULE-BODY CONTROL - (CLS) 24 WAY
