Body Control Module (FRB) 15 Way
Body Control Module (FRB) 15 Way

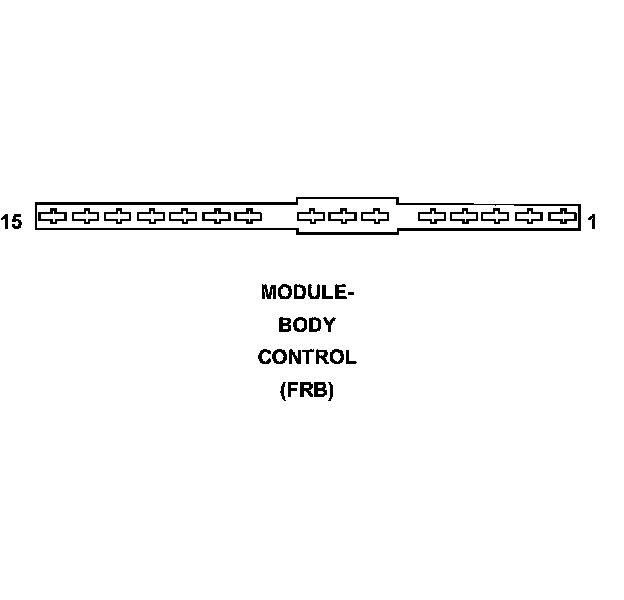

Connector - (FRB) 15 WAY

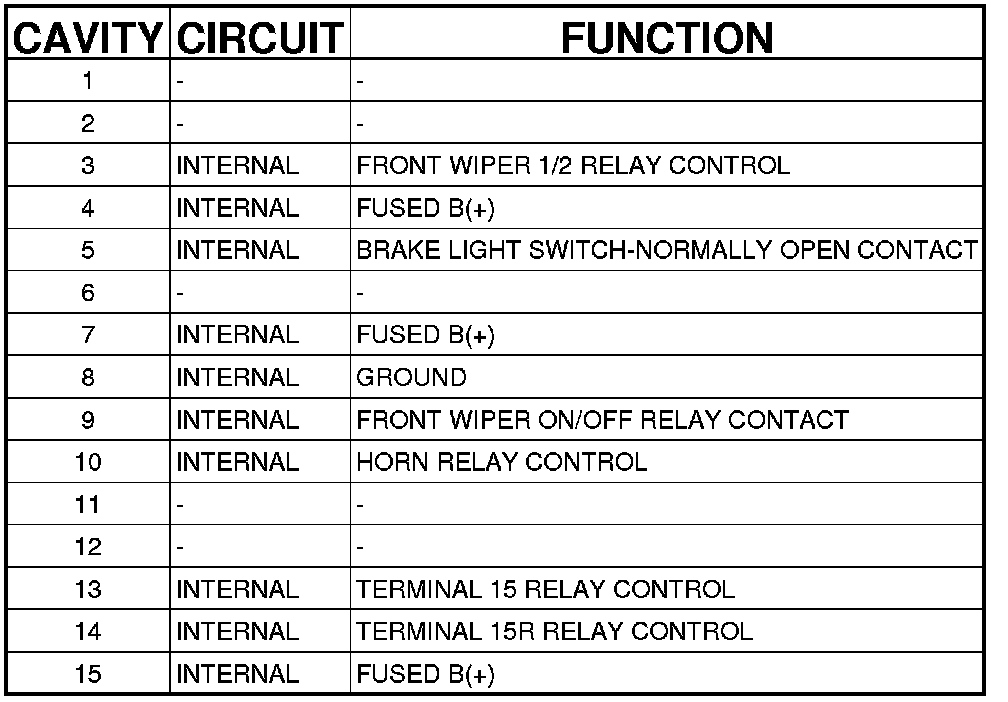

MODULE-BODY CONTROL - (FRB) 15 WAY
