Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Cabin Heater >> System Diagram >> Auxiliary Heater Module 2 C2 (HLS) 4 Way

Auxiliary Heater Module 2 C2 (HLS) 4 Way

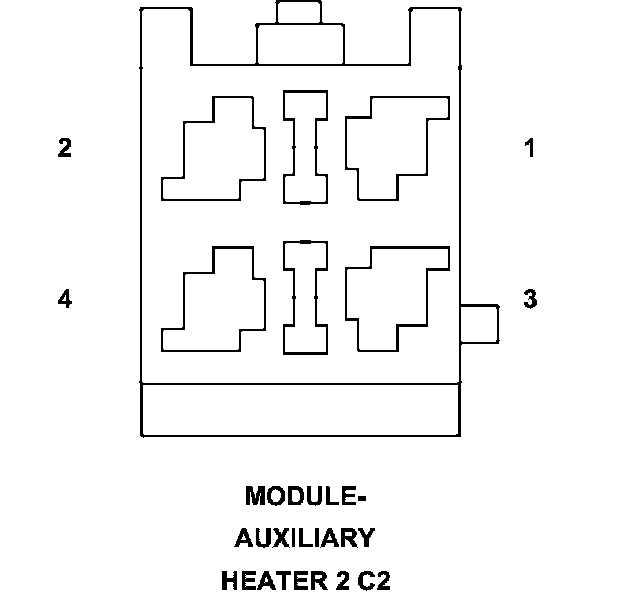

Connector C2 - (HLS) 4 WAY

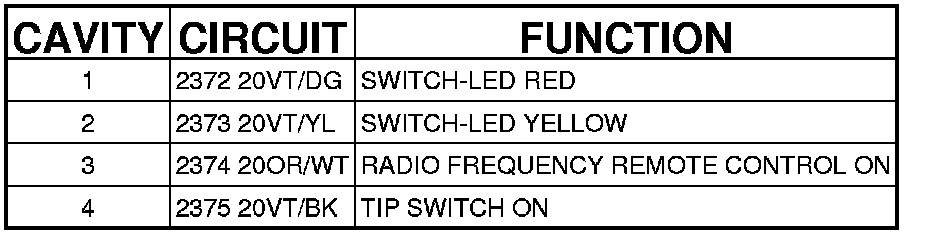

MODULE-AUXILIARY HEATER 2 - (HLS) 4 WAY
