Auxiliary Heater Module 1 C1 (HLS) 8 Way
Auxiliary Heater Module 1 C1 (HLS) 8 Way

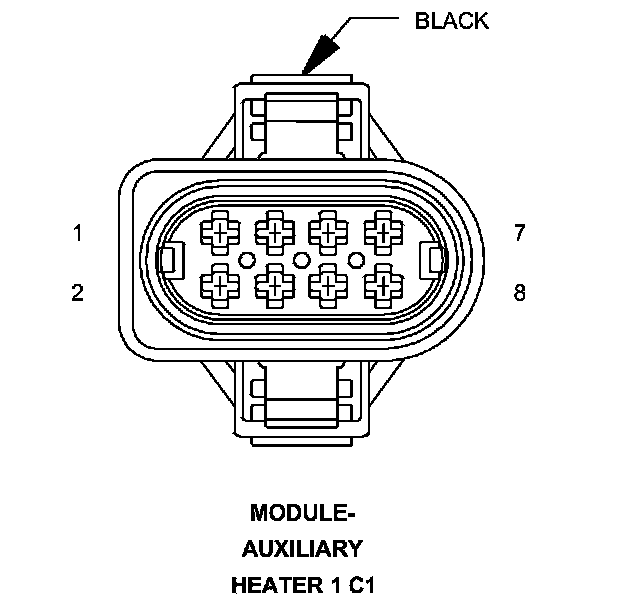

Connector C1 - (HLS) 8 WAY

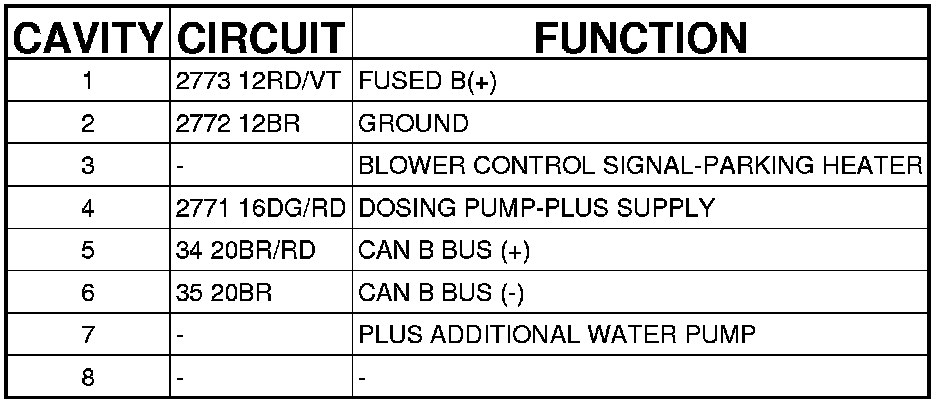

MODULE-AUXILIARY HEATER 1 - (HLS) 8 WAY
