Auxiliary Cabin Heater Transceiver

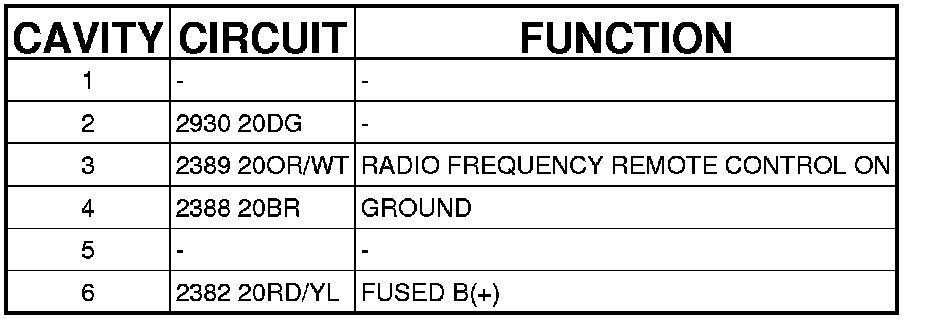

Connector - (CLS) 6 WAY

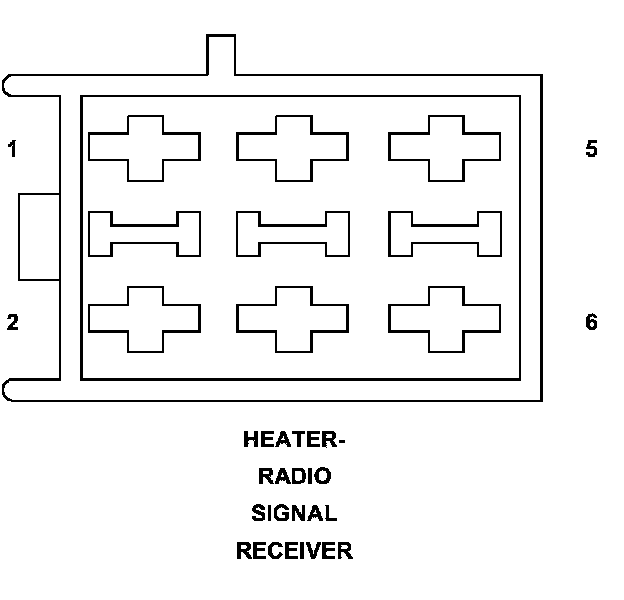

HEATER-RADIO SIGNAL RECEIVER - (CLS) 6 WAY
