Auxiliary Heat Dosing Pump C2 (HLS) 2 Way

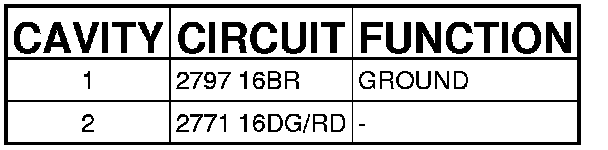

Connector C2 - (HLS) 2 WAY

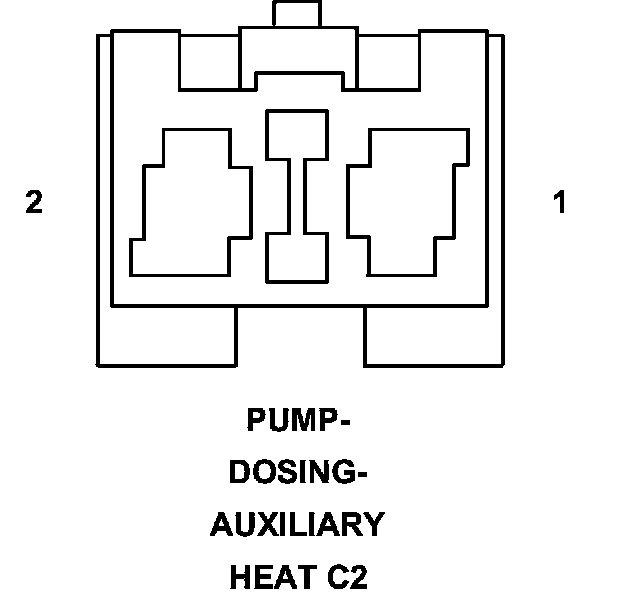

PUMP-DOSING-AUXILIARY HEAT - (HLS) 2 WAY
