Recirculation Door Actuator (LU Climate) 2 Way

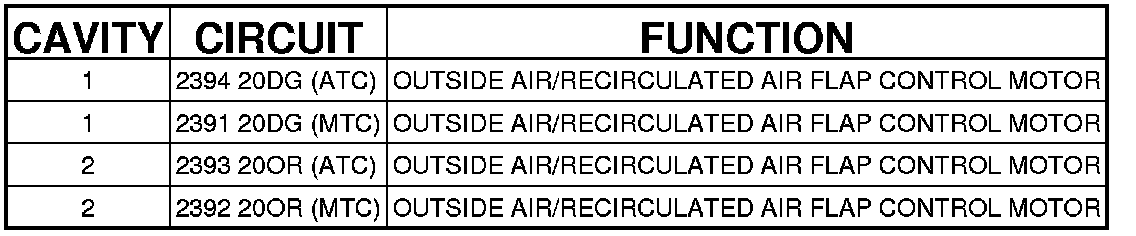

Connector - (LU KLIMA) 2 WAY




ACTUATOR-RECIRCULATION DOOR - (LU KLIMA) 2 WAY
