Rear Recirculation Door Actuator 2 C3 (DLS) 1 Way

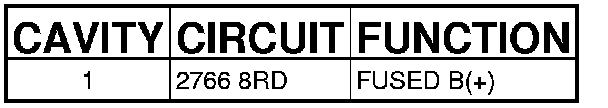

Connector C3 - (DLS) 1 WAY

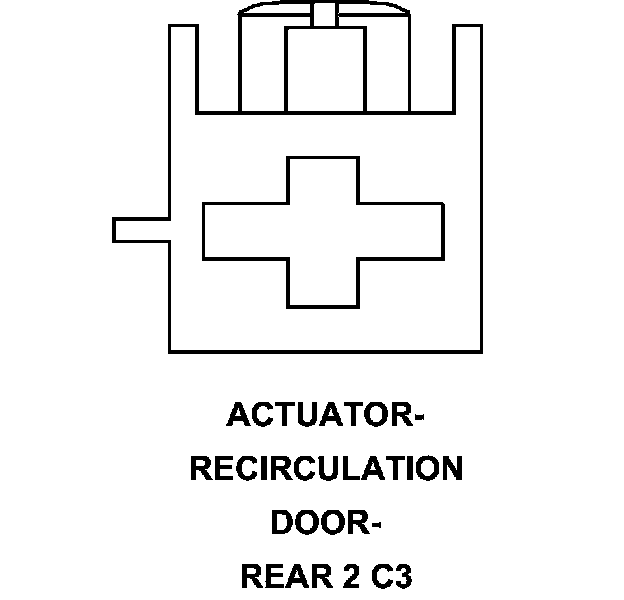

ACTUATOR-RECIRCULATION DOOR-REAR 2 - (DLS) 1 WAY
