Rear Recirculation Door Actuator 2 C2 (DLS) 1 Way

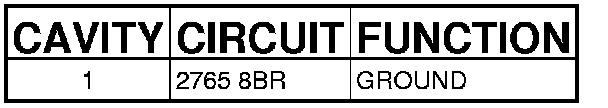

Connector C2 - (DLS) 1 WAY

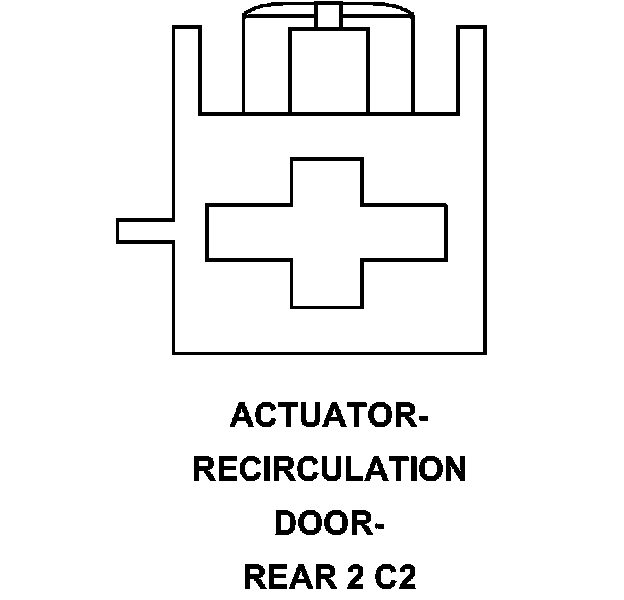

ACTUATOR-RECIRCULATION DOOR-REAR 2 - (DLS) 1 WAY
