Rear Recirculation Door Actuator 1 C2 (HLS) 8 Way






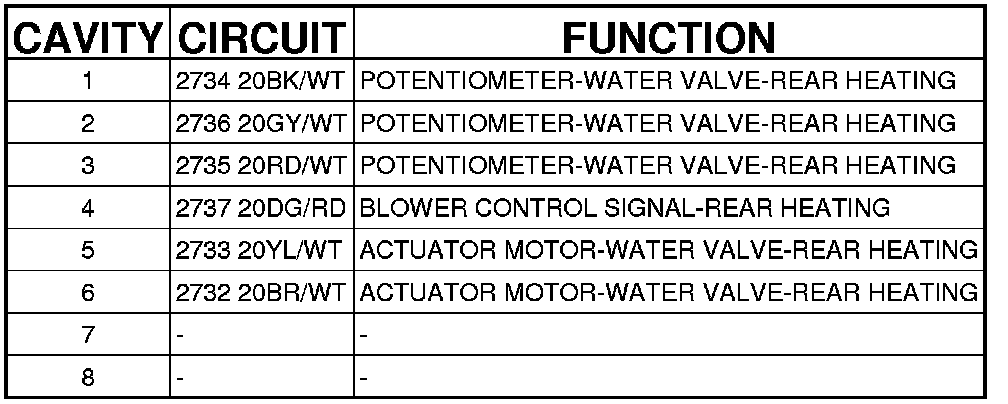

Connector C2 - (HLS) 8 WAY

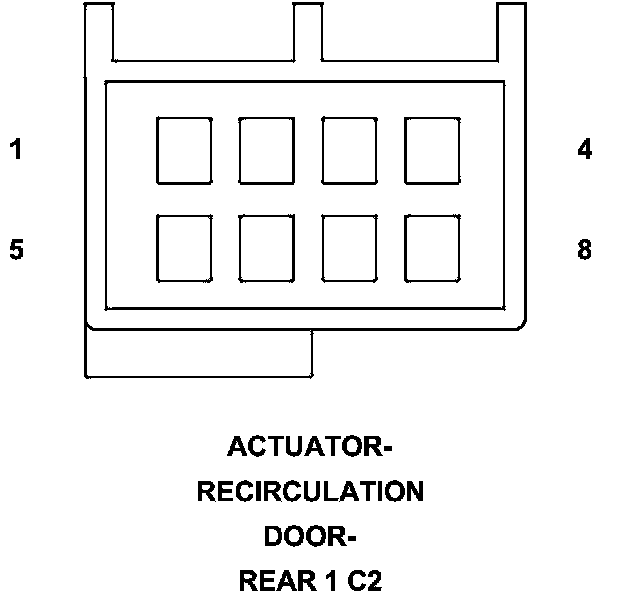

ACTUATOR-RECIRCULATION DOOR-REAR 1 - (HLS) 8 WAY
