Mode Door Actuator (LU Climate) 5 Way
Mode Door Actuator (LU Climate) 5 Way

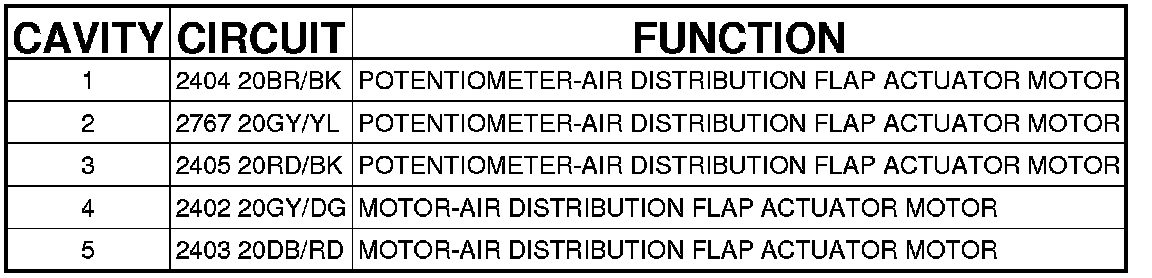

Connector - (LU KLIMA) 5 WAY
ACTUATOR-MODE DOOR - (LU KLIMA) 5 WAY
