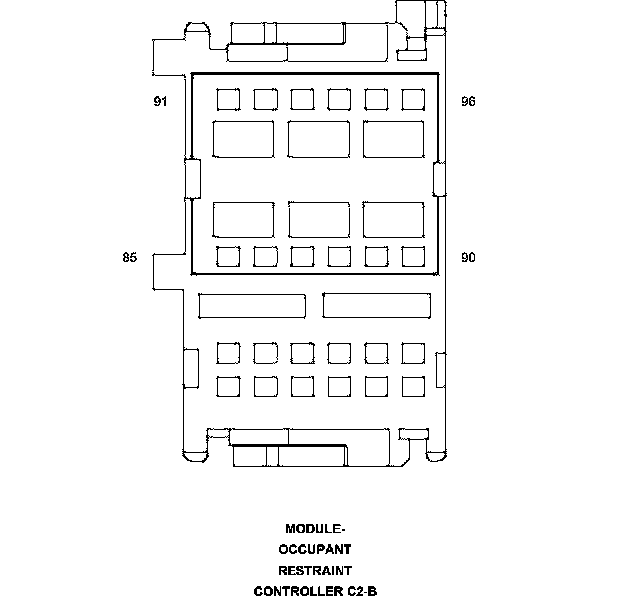

Module-Occupant Restraint Controller C2-B

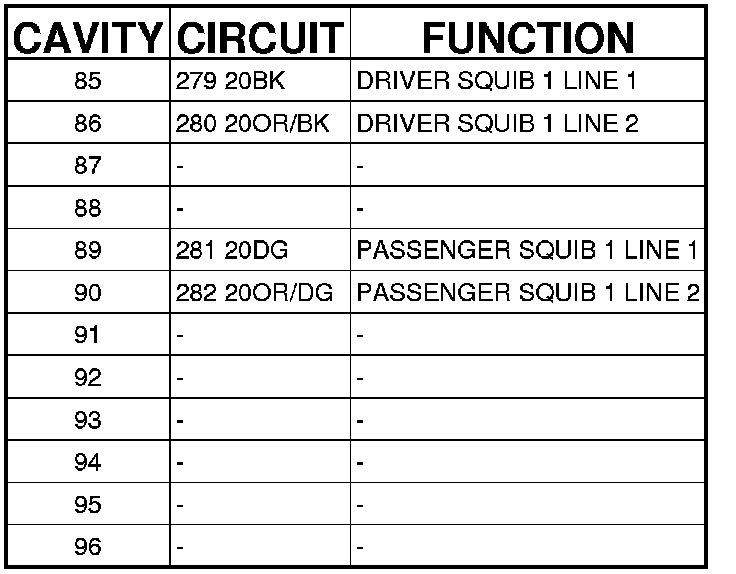

Connector - (CLS) 12 WAY




MODULE-OCCUPANT RESTRAINT CONTROLLER - (CLS) 12 WAY
