Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Towing Module >> Electric Brake Control Module 4 Way

Electric Brake Control Module 4 Way

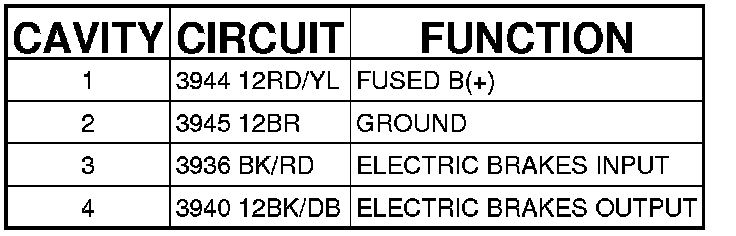

Connector - 4 WAY




MODULE-ELECTRIC BRAKE CONTROL - 4 WAY
