Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accessories and Optional Equipment
>>
Towing Module
>>
Additional Turn Signal Control Module (HLS) 20 Way
Additional Turn Signal Control Module (HLS) 20 Way
Connector - (HLS) 20 WAY

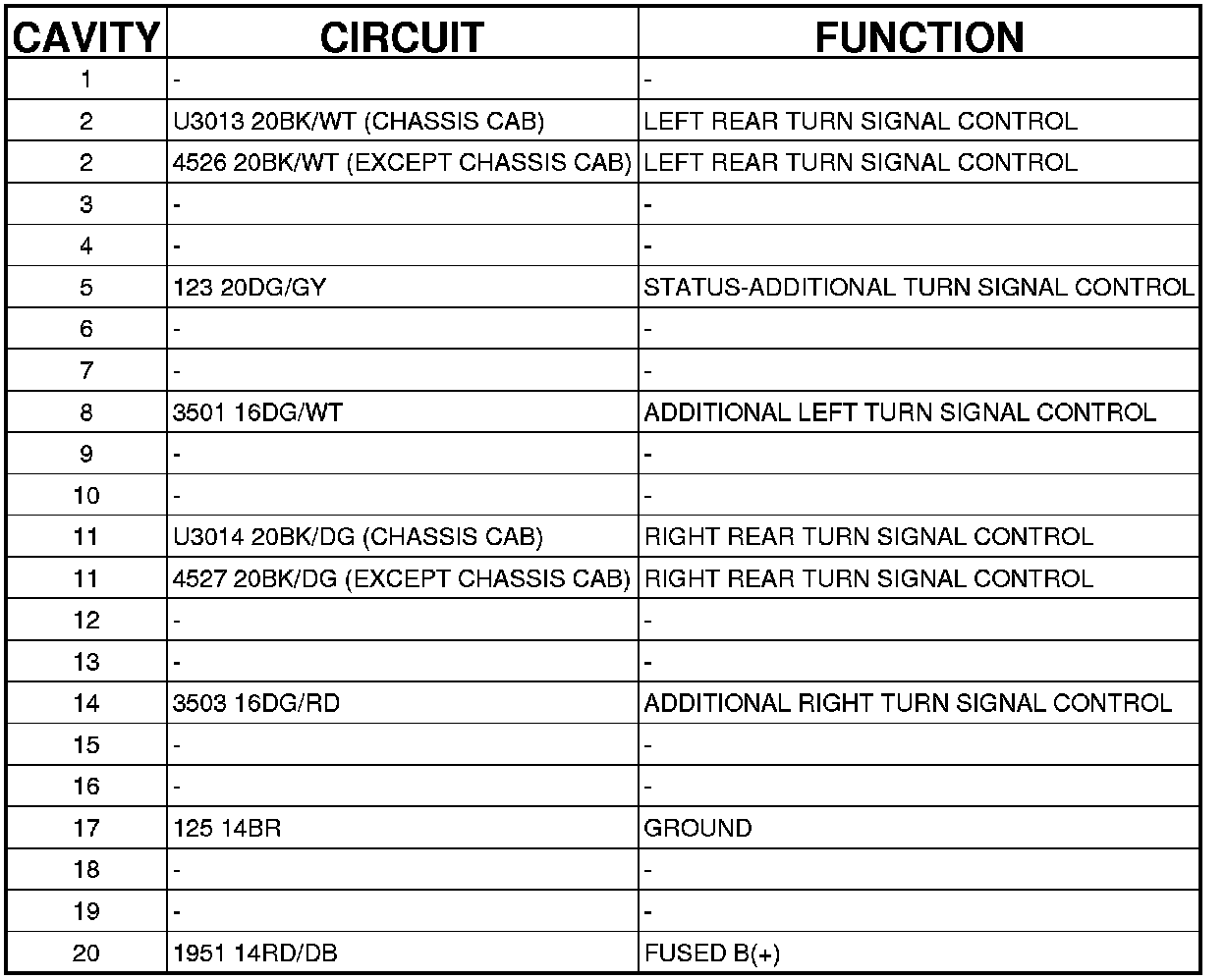

MODULE-ADDITIONAL TURN SIGNAL CONTROL - (HLS) 20 WAY
