Auxiliary Drive On Switch (CLS) 10 Way

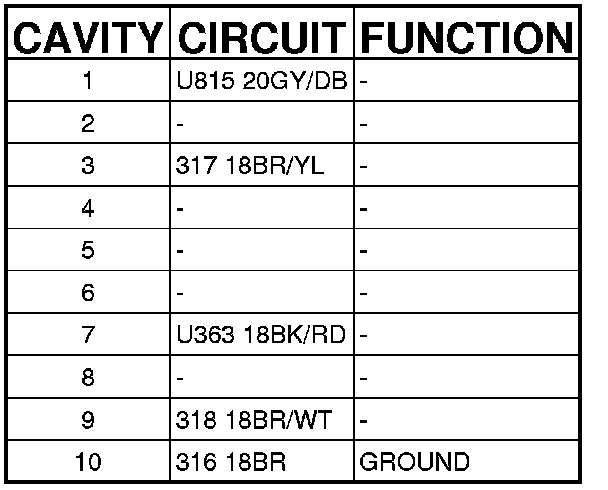

Connector - (CLS) 10 WAY

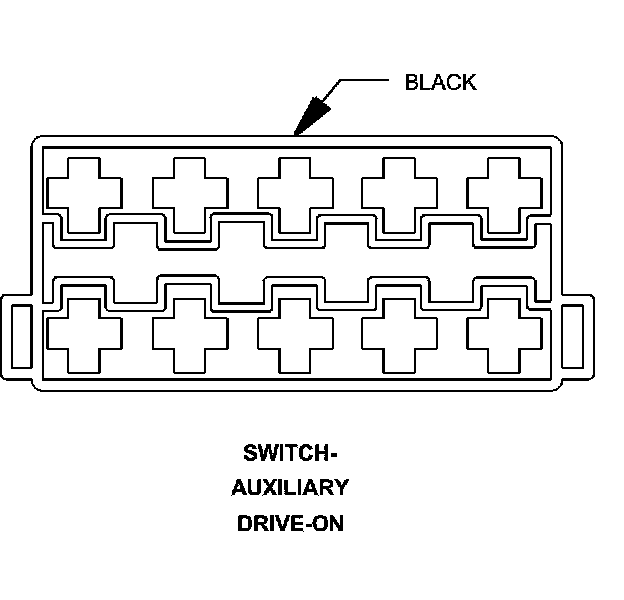

SWITCH-AUXILIARY DRIVE-ON - (CLS) 10 WAY
