Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Radio/Stereo >> Radio Preinstallation Connector (CLS) 16 Way

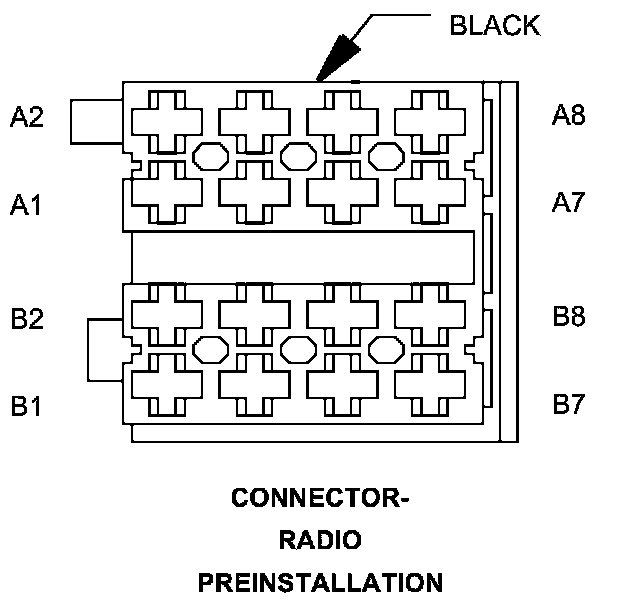

Radio Preinstallation Connector (CLS) 16 Way






Connector - (CLS) 16 WAY

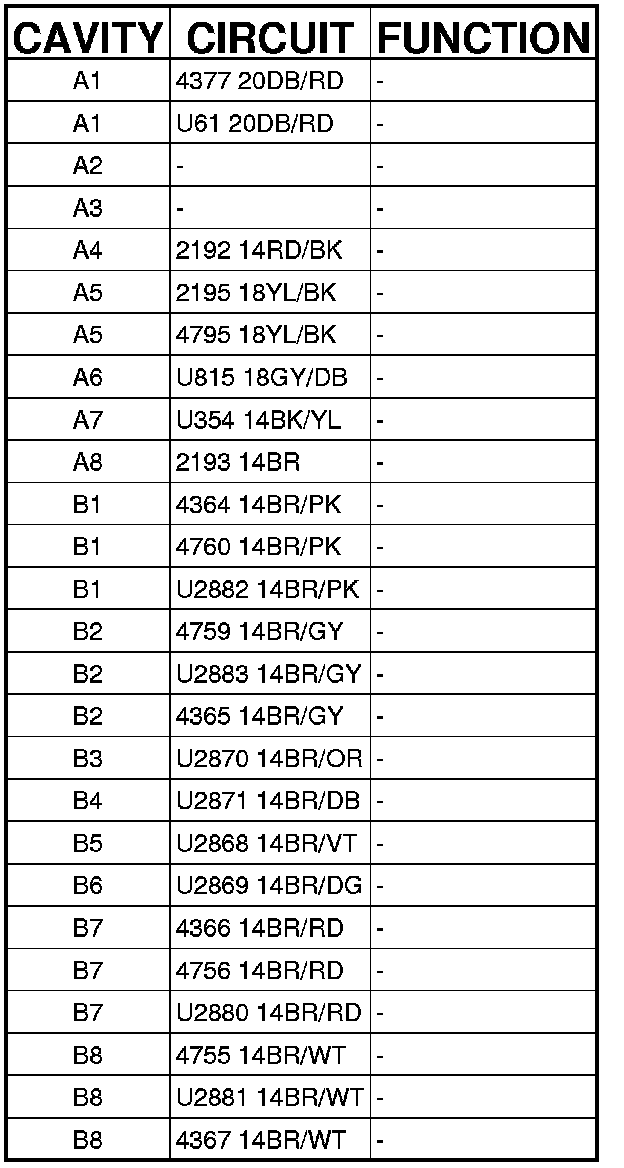

CONNECTOR-RADIO PREINSTALLATION - (CLS) 16 WAY
