Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Radio/Stereo >> Radio C10 (CLS) 12 Way

Radio C10 (CLS) 12 Way

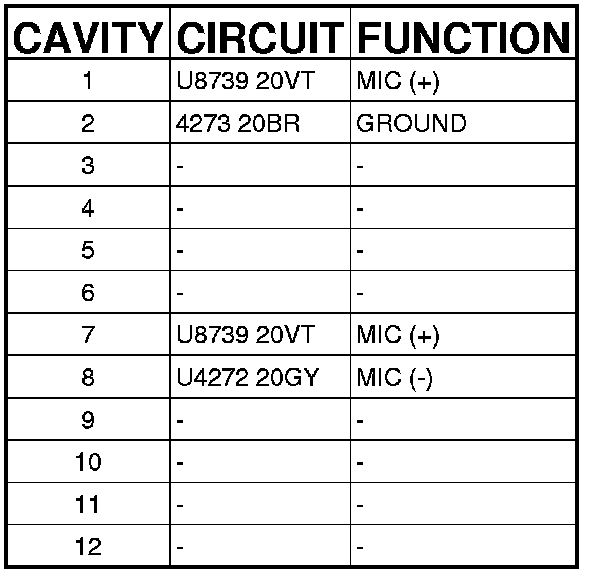

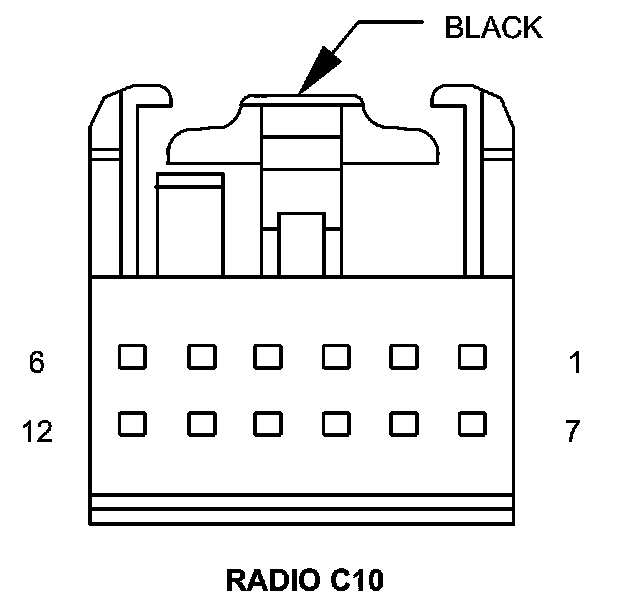

Connector C10 - (CLS) 12 WAY




RADIO - (CLS) 12 WAY
