Backup Camera Connector (HLS) 7 Way






Connector - (HLS) 7 WAY

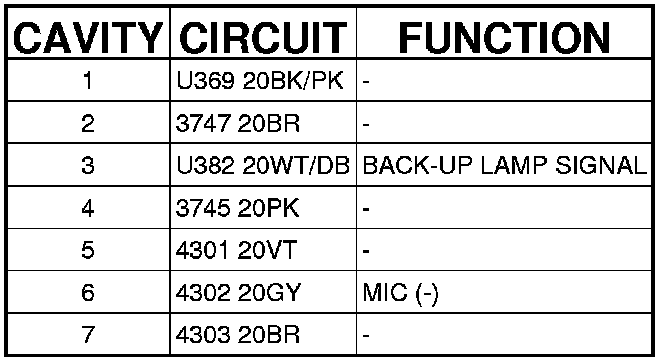

CONNECTOR-BACKUP CAMERA - (HLS) 7 WAY
