Dual Rear Wheels (DRW)

DUAL REAR WHEEL (DRW)

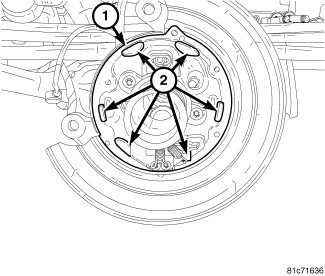

1. Lubricate the pads (2) on the support plate (1) that the shoes ride on.






NOTE: Preassemble the retracting spring with the short hook eye from the inside together with the adjuster wheel at the top. Fit the preassembled park brake shoes on the brake carrier.

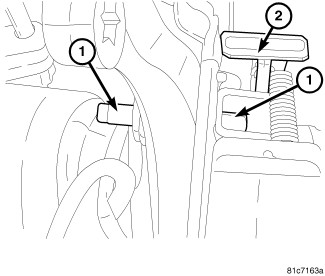

2. Ensure that the cable lock moves easily before installing shoes.Install the park brake shoes.

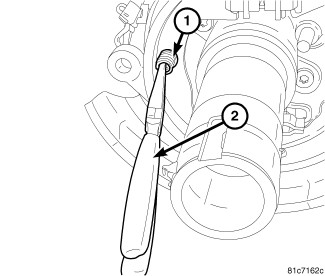

3. Install the pressure hold down springs (1) by depressing with a pair of needle nose pliers (2) and twisting to lock in place.

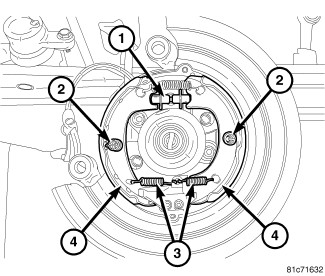

4. Install the adjuster (1) between the park brake shoes (2).





5. Install the lower retracting springs (3).





6. Install the hub/bearing assembly .
7. Install the disc brake rotor .

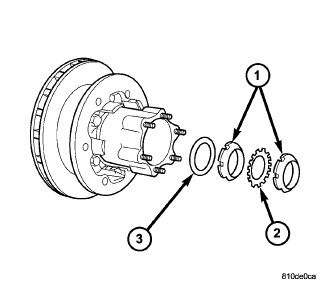

8. Install the rear wheel flange ring. Tighten to 200 Nm (148 ft. lbs.).
9. Install the rear wheels.
10. Adjust the parking brakes .
11. Lower the vehicle.
12. Pump the brake pedal several times to check the operation of the brakes before moving vehicle.
