Rear Seat Back Shield - Installation






INSTALLATION

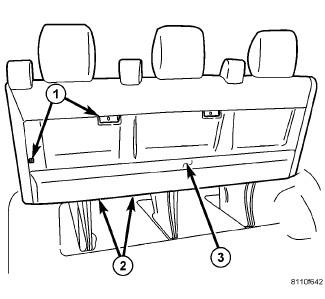

1. Install the panel (3) and install the screws (1, 2).
