Sunroof Guide - Installation

INSTALLATION

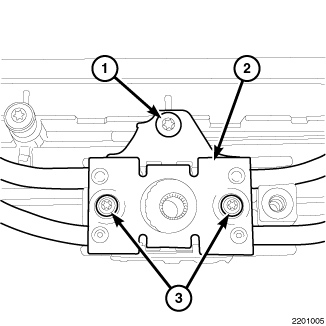

1. Install the guide cables and tubes onto the drive gear housing (2).
2. Install the drive gear and install the retaining plate.
3. Install the screws (3).

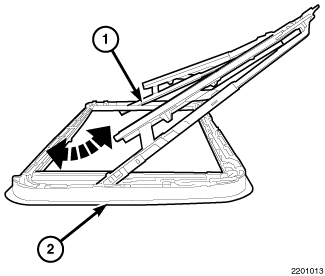

4. Position the guide assembly (1) into the closeout frame (2) and seat fully.

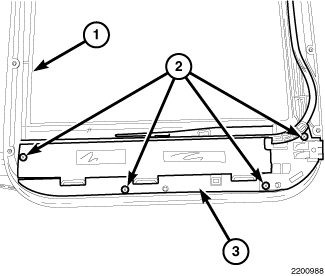

5. Install the screws (2) attaching the guide assemblies (3) to the closeout frame (1).





6. Verify that the cable tubes are seated fully into the closeout frame and install the screw (1).





7. Install the glass.
8. Install the sunroof into the sunroof opening and install the sunroof clamping frame (1).
