Sunroof Glass - Installation

INSTALLATION

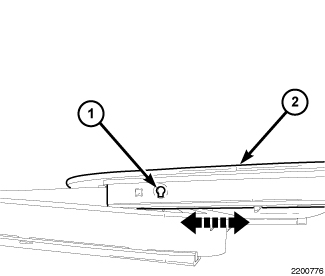

1. Position the glass channels onto the guides and slide forward until the inner strap holes (1) line up with the holes in the glass channels.

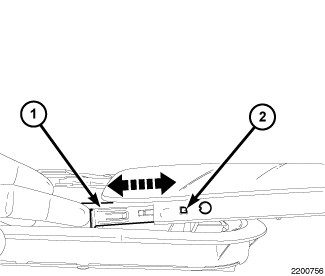

2. Position the locking pins (2) through the holes in the glass channels and inner straps with the notch (1) towards the glass.

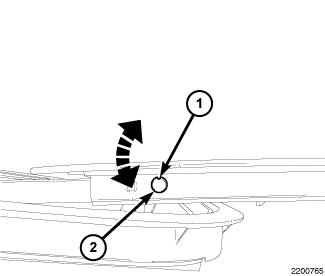

3. Turn the locking pins (2) 1/4 turn with the notch towards the front of the sunroof.





4. Install the locking clips (1) and seat the locking tabs (2) fully.
