Sunroof Frame - Installation

INSTALLATION





1. Install the clamping frame (1) onto the closeout frame with the slot positioned over the screw (3).
2. Install the 20 screws (2).

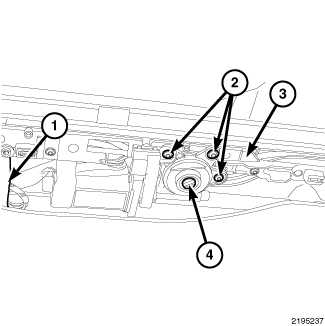

3. Install the motor into the sunroof bracket (3).
4. Install the three fasteners (2).
5. Connect the electrical connector (1).
6. Install the sunroof trim ring.
