Sunroof - Description

DESCRIPTION










WARNING: Keep fingers and other body parts out of sunroof opening at all times.

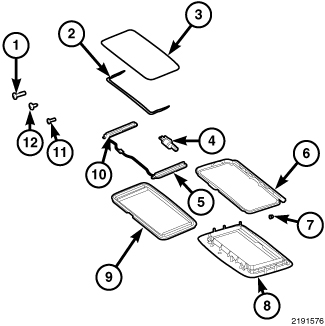

The sunroof features a power sliding glass panel and a sunshade which can be manually positioned anywhere along its travel, rearward of glass panel front edge.

The sunroof is electrically operated from a switch located on the headliner between the front driver and passenger seats just behind the upper windshield opening header. What is commonly known as the overhead console on most vehicles is replaced by the Roof Control Module (RCM) for the Sprinter. The RCM can also be referred to as the Overhead Control Panel (OCP) control unit or DBE. To operate the sunroof the ignition switch must be in either the Accessory or On/Run position. The sunroof switch has four positions, it can be pushed, pulled, slide forward, and aft. The sunroof has an express open only. To complete this, slide the switch back pass the detent and release.

NOTE: If the Roof Control Module (RCM) or any sunroof component is replaced, the sunroof has to be normalized. .
